Shop Master 2x72" Bevelling Combo

Sale price
$1,815
List price
$1,943
You save
$128 (7%)
Stand:
In stock! Usually ships within 24 hours.
Pickup available at 6 Geebung street Polo Flat NSW

Usually ready in 24 hours

View store information

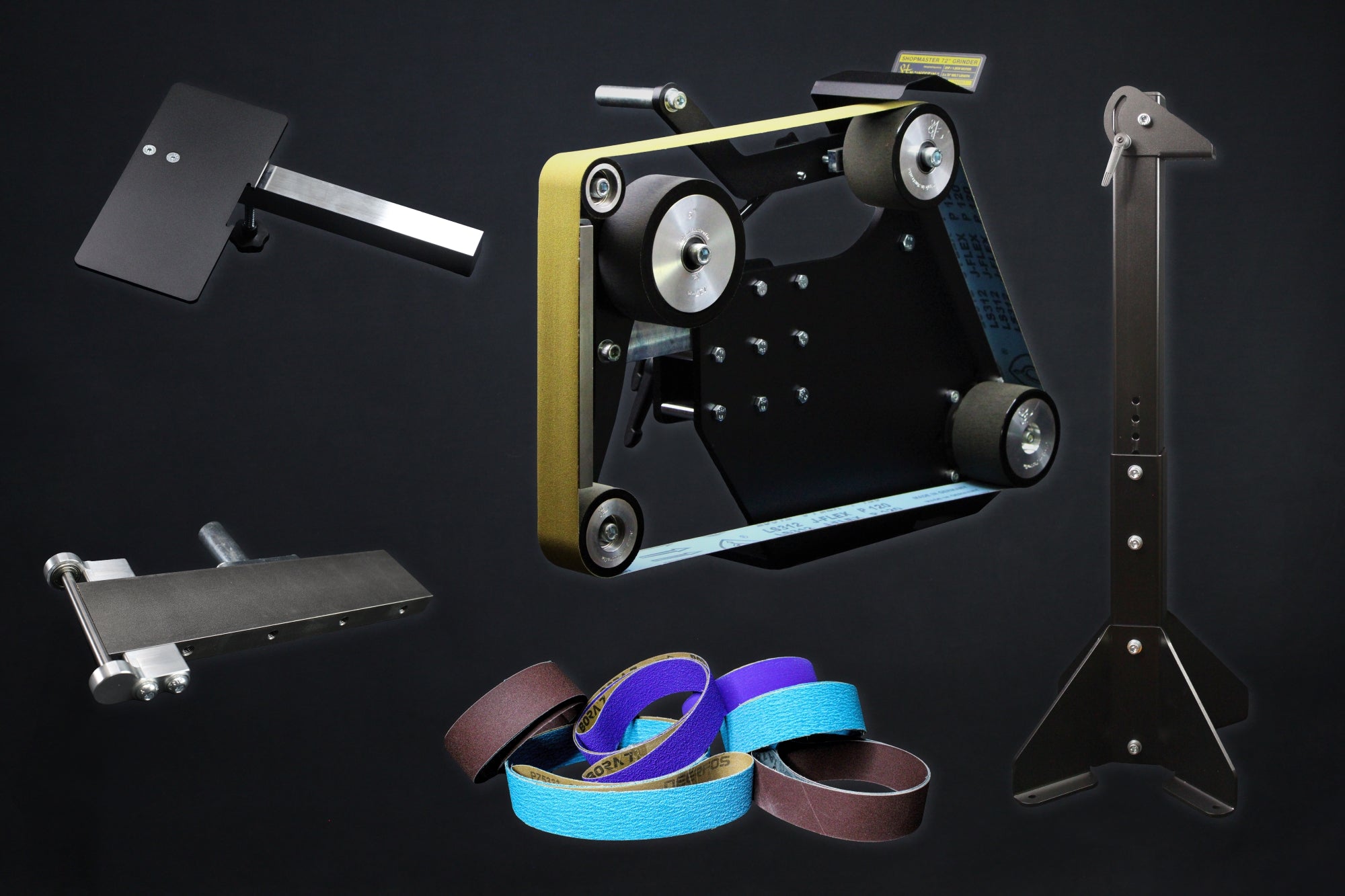

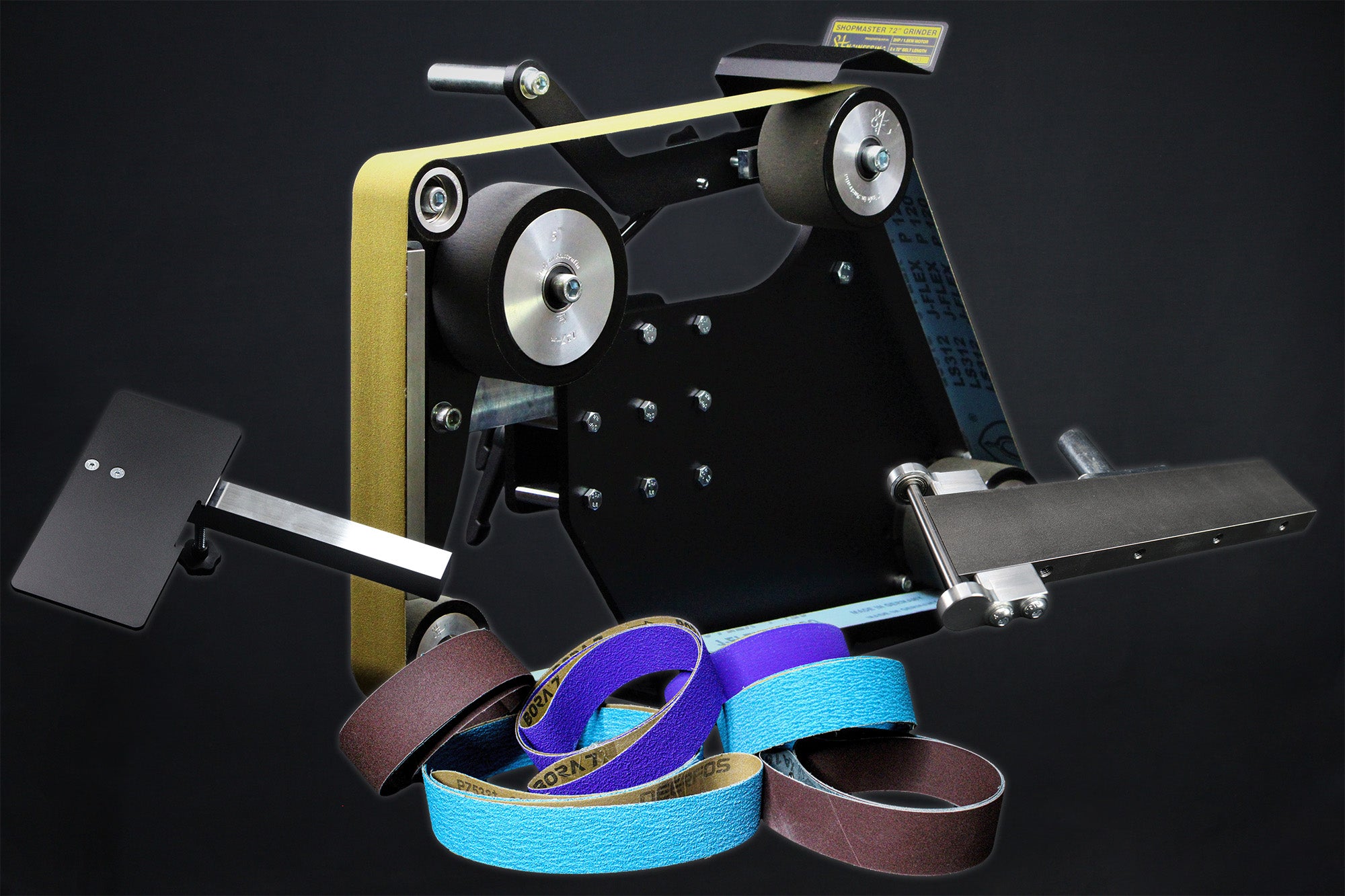

Shop Master 2x72" Belt Grinder, Angle Adjustable rest and 6mm Plunge Platen Combo

Everything you need to grind and finish bevels like a Pro!

This is our newest combo kit, made specifically with the knife maker in mind.

The kit is based around our Shop Master 2x72" Belt grinder and includes an Angle Adjustable Rest, a 6mm Plunge Platen and a selection of belts to kick your knife making into the next gear.



Check out our bevel grinding blog post to find out more here.



All grinders and accessories are designed, manufactured and hand assembled in our workshop in the Snowy Mountains.



Click here for our Shop Mate 48" Bevelling Combo

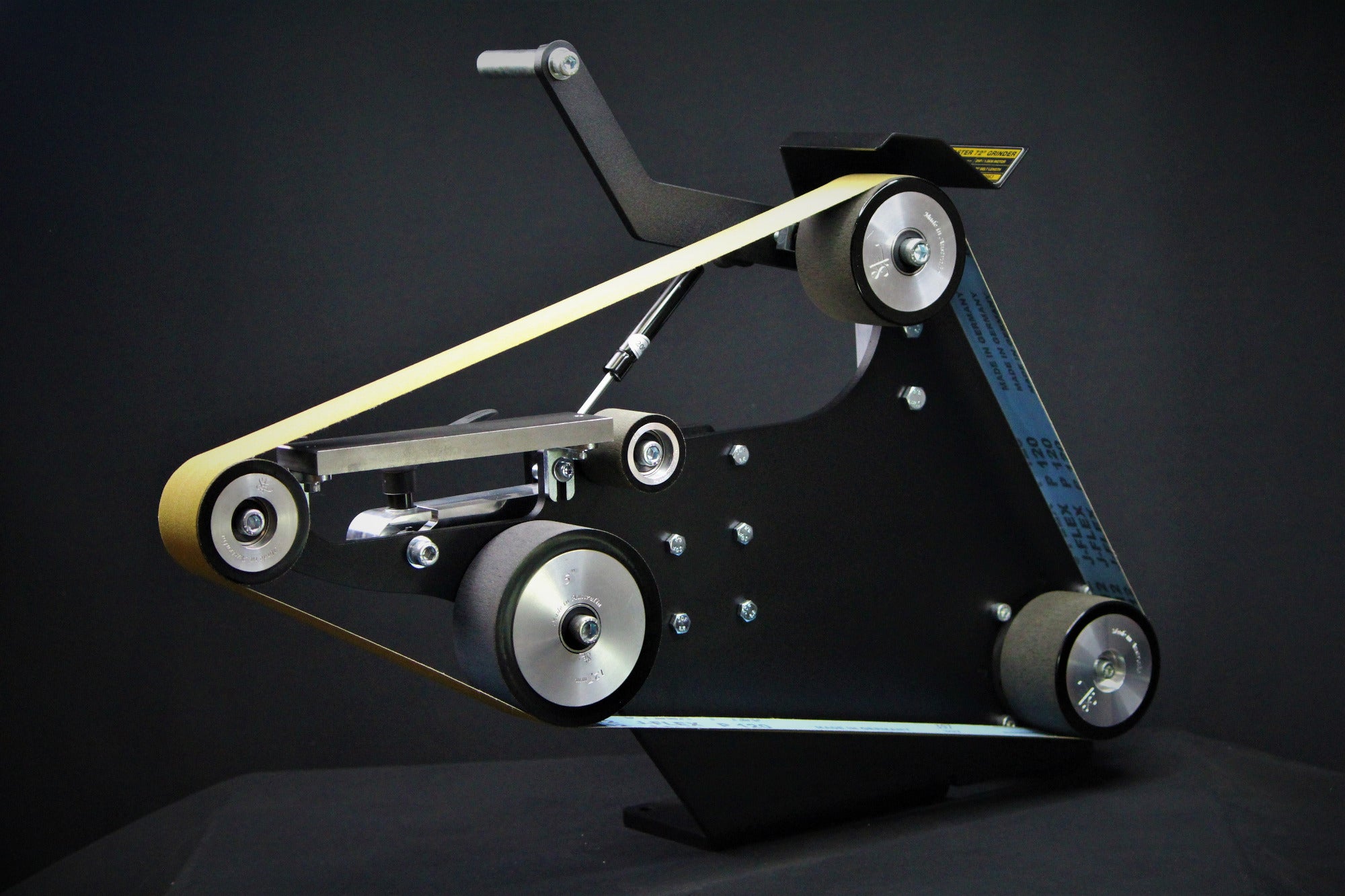

SHOP MASTER 72

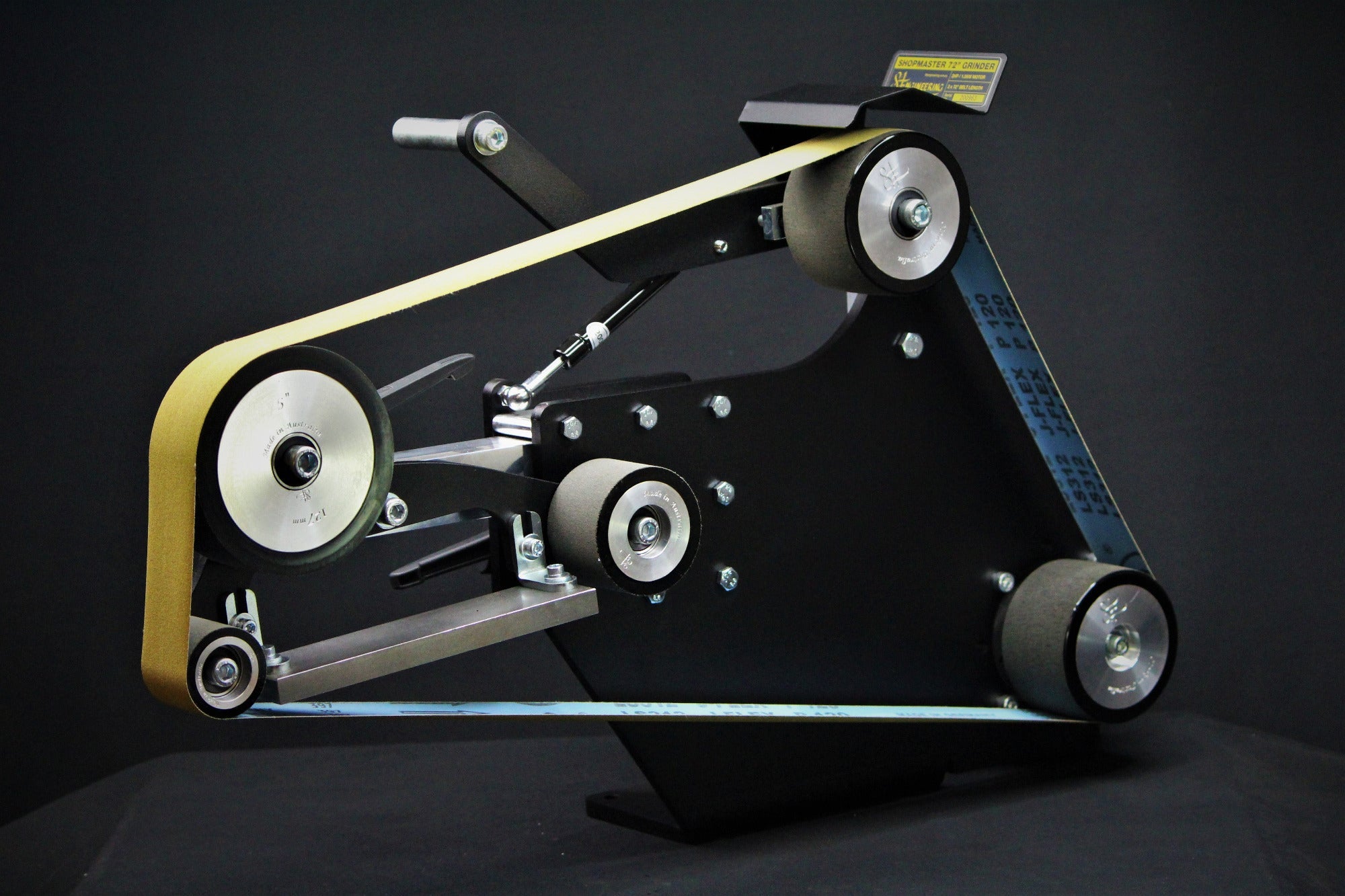

The Shop Master 2x72" belt grinder linisher is a versatile machine, optimised for knife makers and blacksmiths.

A long 210mm platen, improved platen access and the ability to run 14" contact wheel makes the Shop Master 2x72" a great option for knife makers who want a professional-grade machine that will be up to any task you throw at it throughout your knife-making journey.

With the twist of a handle, the 6-in-1 rotating platen provides:

- Flat steel platen

- 2" contact wheel

- 3" contact wheel

- 5" contact wheel

- Short Slack belt

- Long slack belt

Effortlessly and efficiently configure the grinder to flatten material, rough out a knife blank and shape a handle - all without the need for tools! (Changing belts is just as easy).

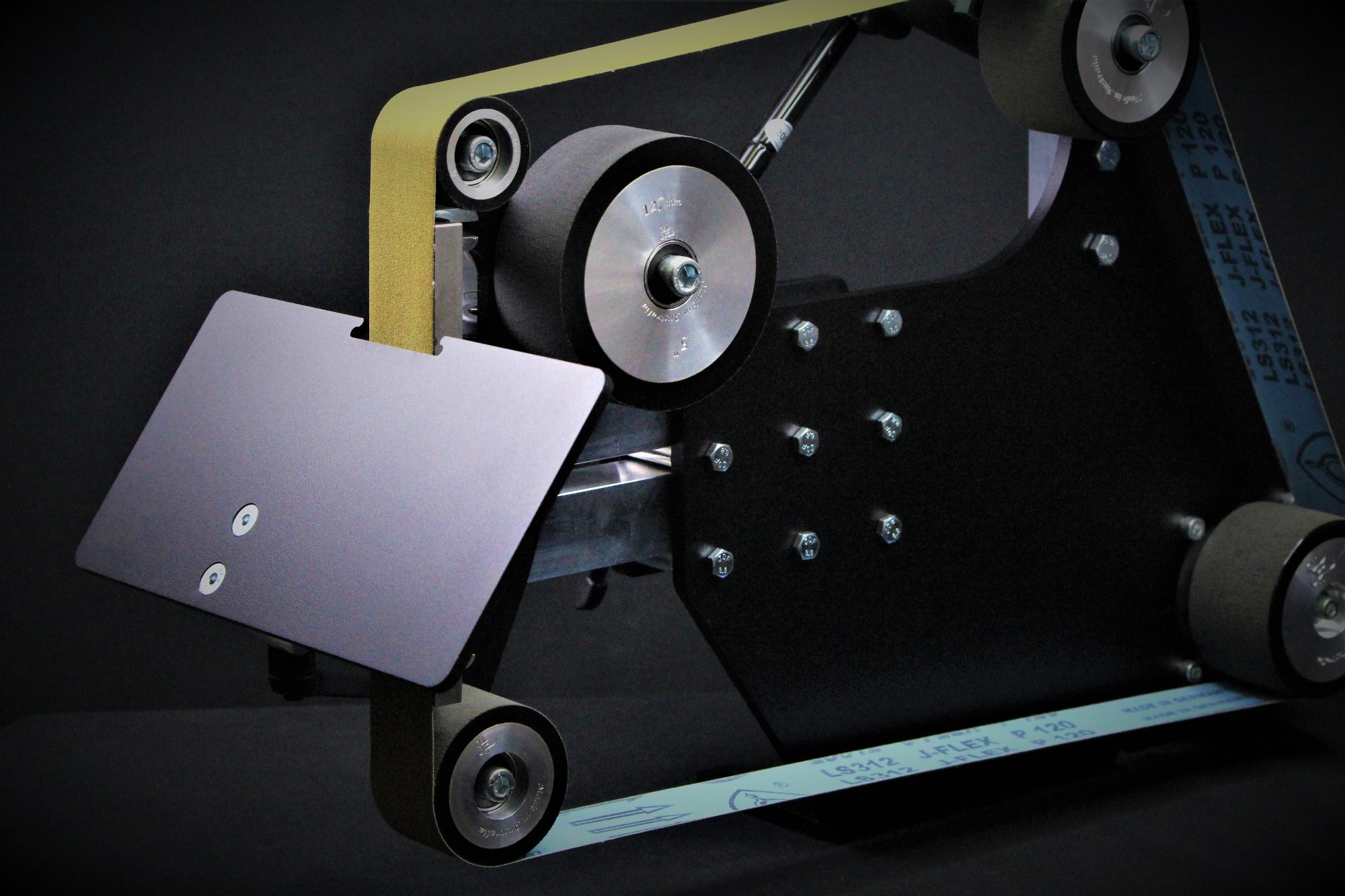

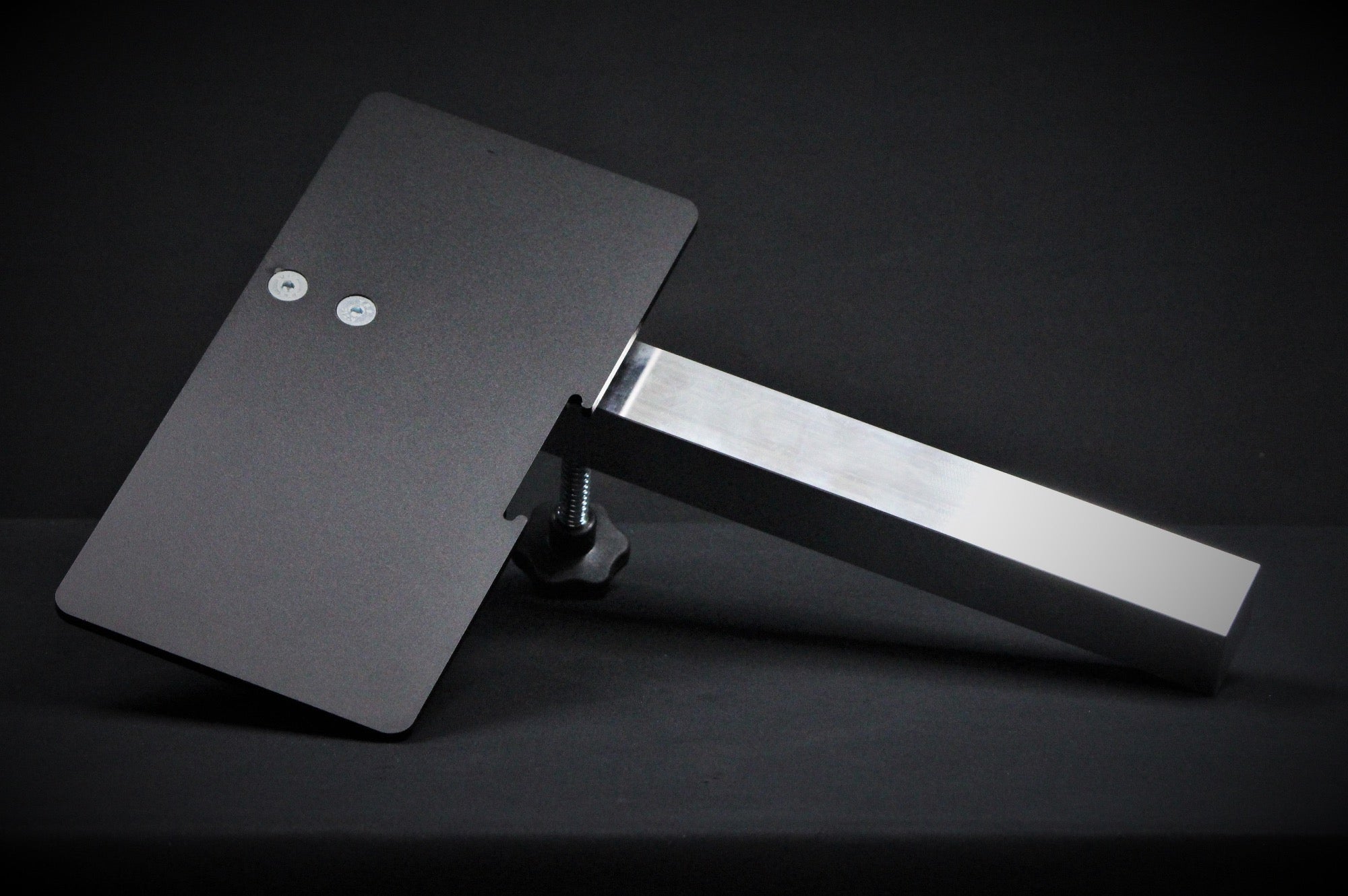

ANGLE ADJUSTABLE REST

The Angle Adjustable Rest's fine angle adjustment knob, platen notch and large rest area make it the perfect tool for grinding your knife bevels.

Simply set the angle between the platen and rest at the calculated angle for your bevel, clamp your knife tang to a 123 block (or screw to a square block of wood) and start grinding!

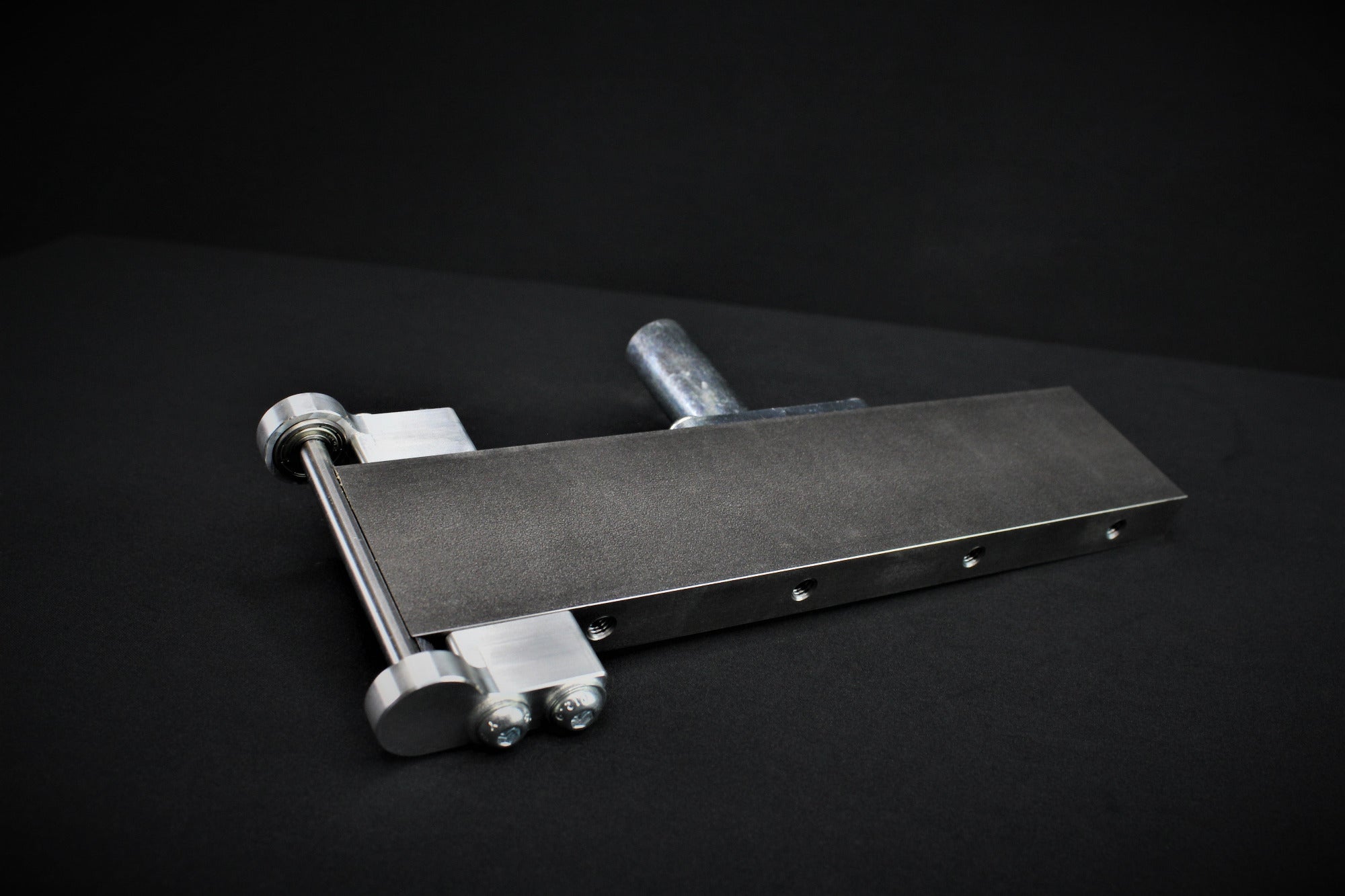

6mm PLUNGE PLATEN

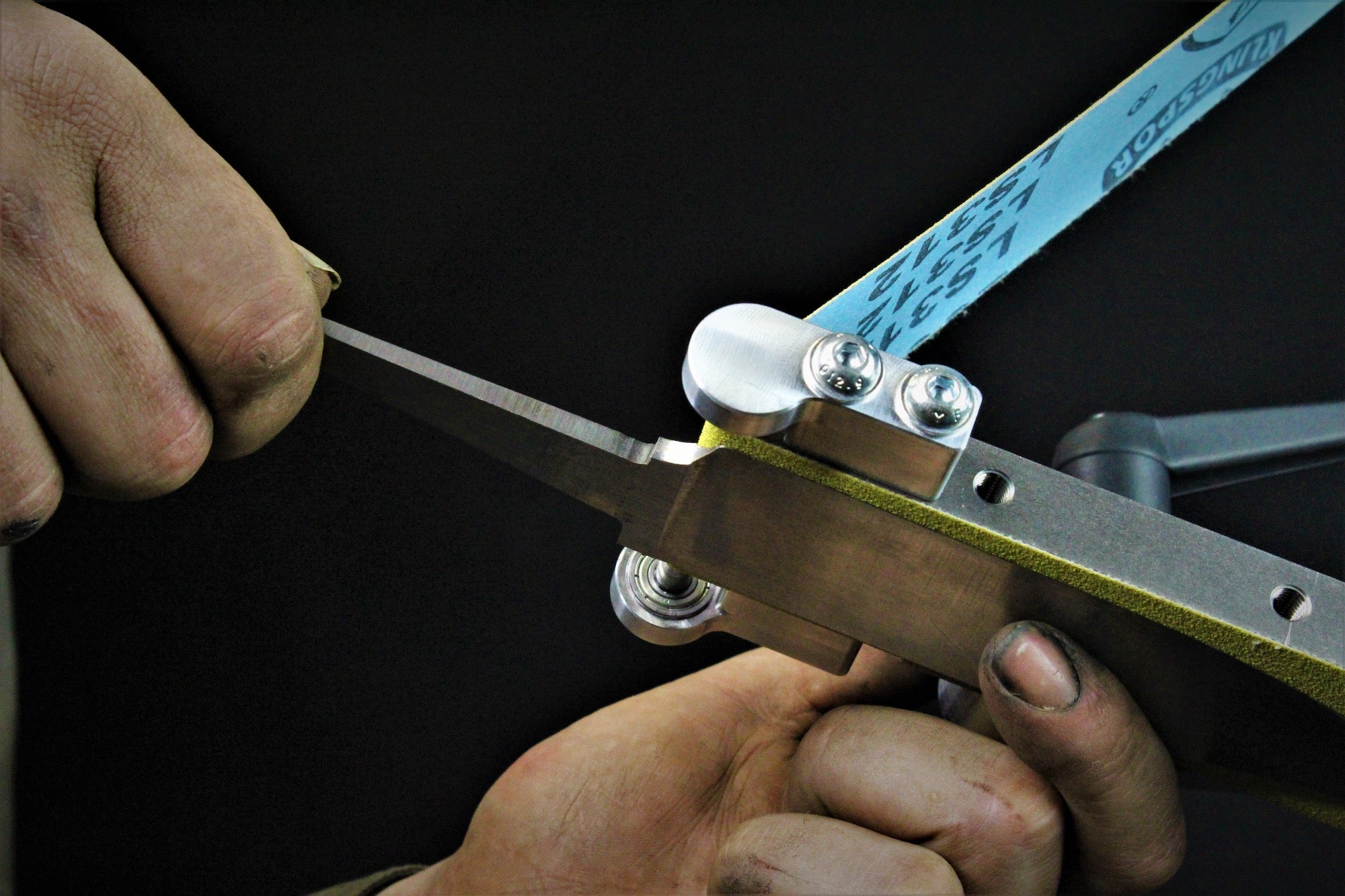

The Plunge Platen (sometimes referred to as a 'waterfall platen') is an indispensable tool not only for getting plunge lines clean and symmetrical, but for sanding your freshly ground bevels to a consistent, high grit finish.

Stop scrapping blanks, save countless hours of work and all but eliminate hand sanding!



BELTS

Included in the kit is our 3M Starter belt pack which includes:



BENCH TOP STAND

Our Bench Top Stand (BTS) is the perfect addition to your Shop Mate 2x48" belt grinder / linisher. Providing a rigid and stable mounting platform, the BTS can be bolted to your existing work bench - great for those working in smaller areas or wanting to optimize on valuable floor space. The stand raises the grinder 185mm from the surface of your bench to a more usable working height, and the tilting mechanism breathes a whole new life into the existing functionality of your grinder.



HEIGHT ADJUSTABLE PEDESTAL STAND

Our Height Adjustable Pedestal Stand (HAPS) is the perfect addition to your Shop Mate 2x48" belt grinder / linisher, providing a compact, stable mounting platform for your VFD and grinder. These stands allow for a 300mm height adjustment (from 850-1150mm in 25mm steps), making it easy to set a comfortable and ergonomic working height regardless of your stature.

Product Specifications

Shop Master 2x72" Belt Grinder Linisher:
- 2 × 72” belt length
- Pre-wired 2 hp 1.5 kW motor and VFD
- 0 – 4800 surface feet per minute belt speed
- 8″ / 210mm platen - Rotating platen
- 2”,3” and 5" contact wheels
- Rubber coated wheels for smooth performance and great belt traction
- Flat plane belt tracking for accurate belt alignment
- 2 tool arm slots
- Fixed work rest
- Protective spark guard
- Flips from vertical to horizontal with bench or pedestal stand (sold separately)
- Made in Australia

Angle Adjustable Rest:
-300x150mm steel work rest coated in industrial hard-wearing powder coat
-CNC machined 6061 aluminium billet tooling arm
-Premium indexing handles and knobs made in Germany
-80ᵒ to 170ᵒ angle adjustment

Plunge Platen:
- 215mm steel platen
-19mm spigot
-Spigot can be used platen facing up or down and to suit all 84 Engineering belt grinders
-6mm wheel is made from centerless-ground silver steel
-19mm wheel comprises steel billet center coated in 73 Shore A urethane rubber
-Precision CNC machined aluminium billet brackets

Included in package

- Shop Master 2x72" 2hp Belt Grinder
- 6-in-1 rotating platen
- Fixed steel work rest
- Angle Adjustable Rest
- Plunge Platen
-Selection of 2x72" abrasives:
- 1x 60g Ceramic
- 1x 120g ceramic
- 1x 120 aluminium oxide
- 1x 240 aluminium oxide
-1x 320g aluminium oxide
- 1x 60g zirconia
- 1x 120g zirconia

Documents
Shipping Information

Our on-line store is open 24/7 and we ship Monday through Friday, excluding some holidays. Orders received for products without shipping restrictions on its product page will ship the following business day when received before 12:00 p.m. AEST. Orders in high demand will have an estimated production time listed on its product page and will ship according to the date listed.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Profile your blade

Between the flat platen, 2", 3" and 5" contact wheels - the Shop Master has everything you need to profile a blade on the 6-in-1 rotating platen

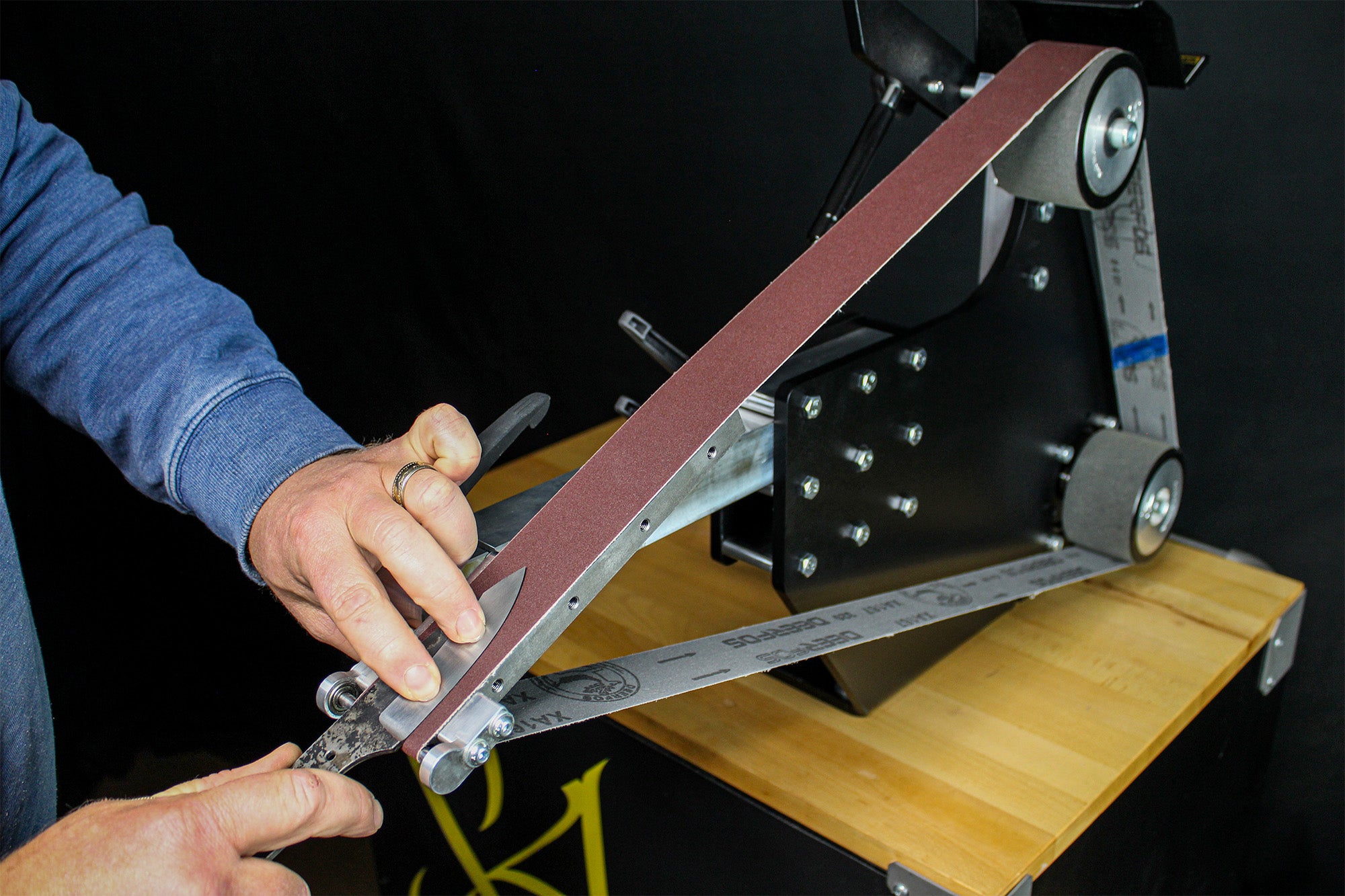

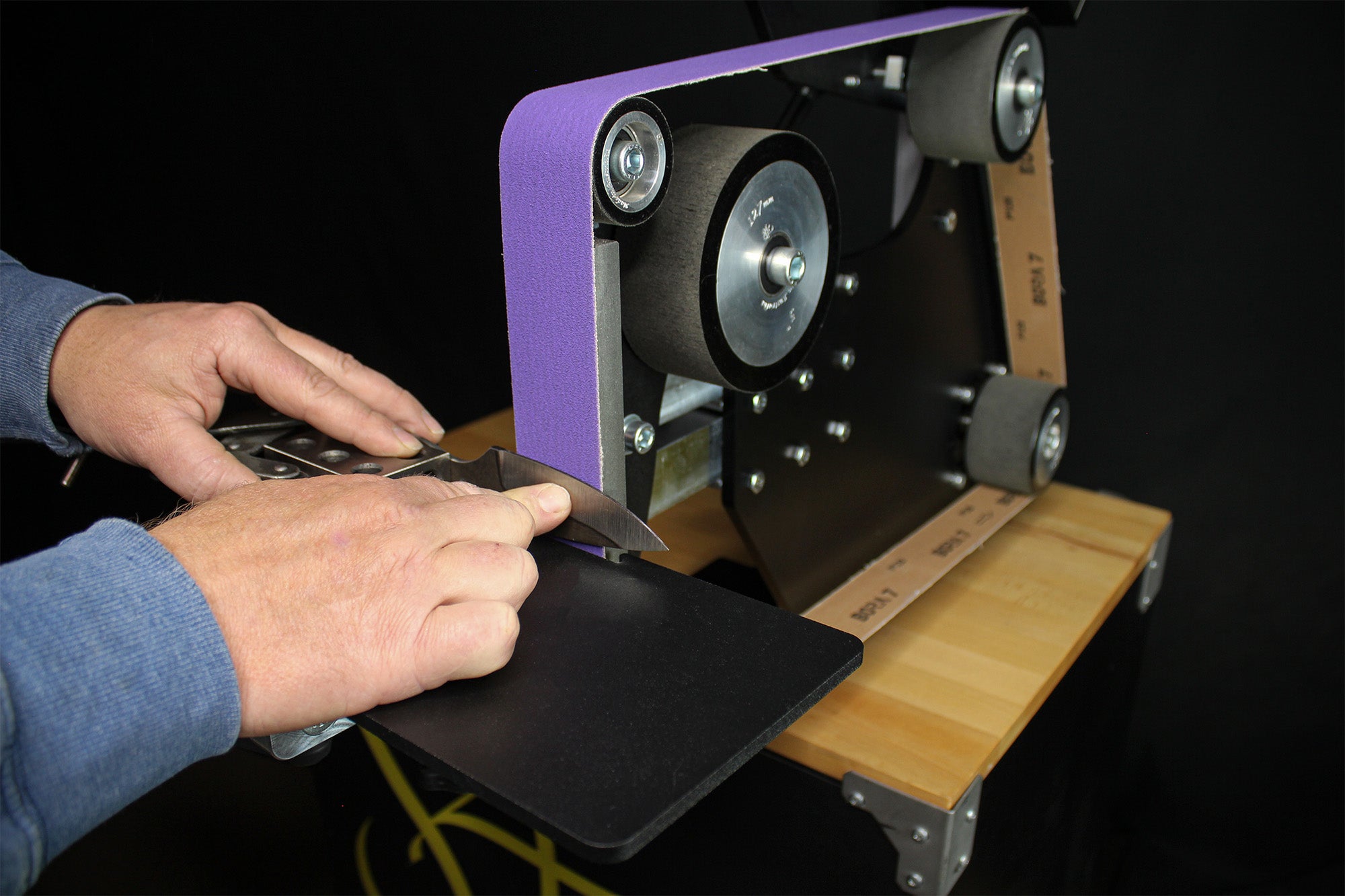

Grind clean, precise bevels

Using the Angle Adjustable Rest and the 'block method', grinding bevels becomes easy and repeatable

Perfect your plunge lines, minimise hand sanding

The Plunge Platen makes grinding perfect plunge lines a breeze. The high-grit sanded finish straight off the machine means minimal hand sanding is required
