Shop Master 2x72" Kit Belt Grinder

Price
$1,532
This item is temporary out of stock
Pickup currently unavailable at 6 Geebung street Polo Flat NSW

WHAT IS A SHOP MASTER?

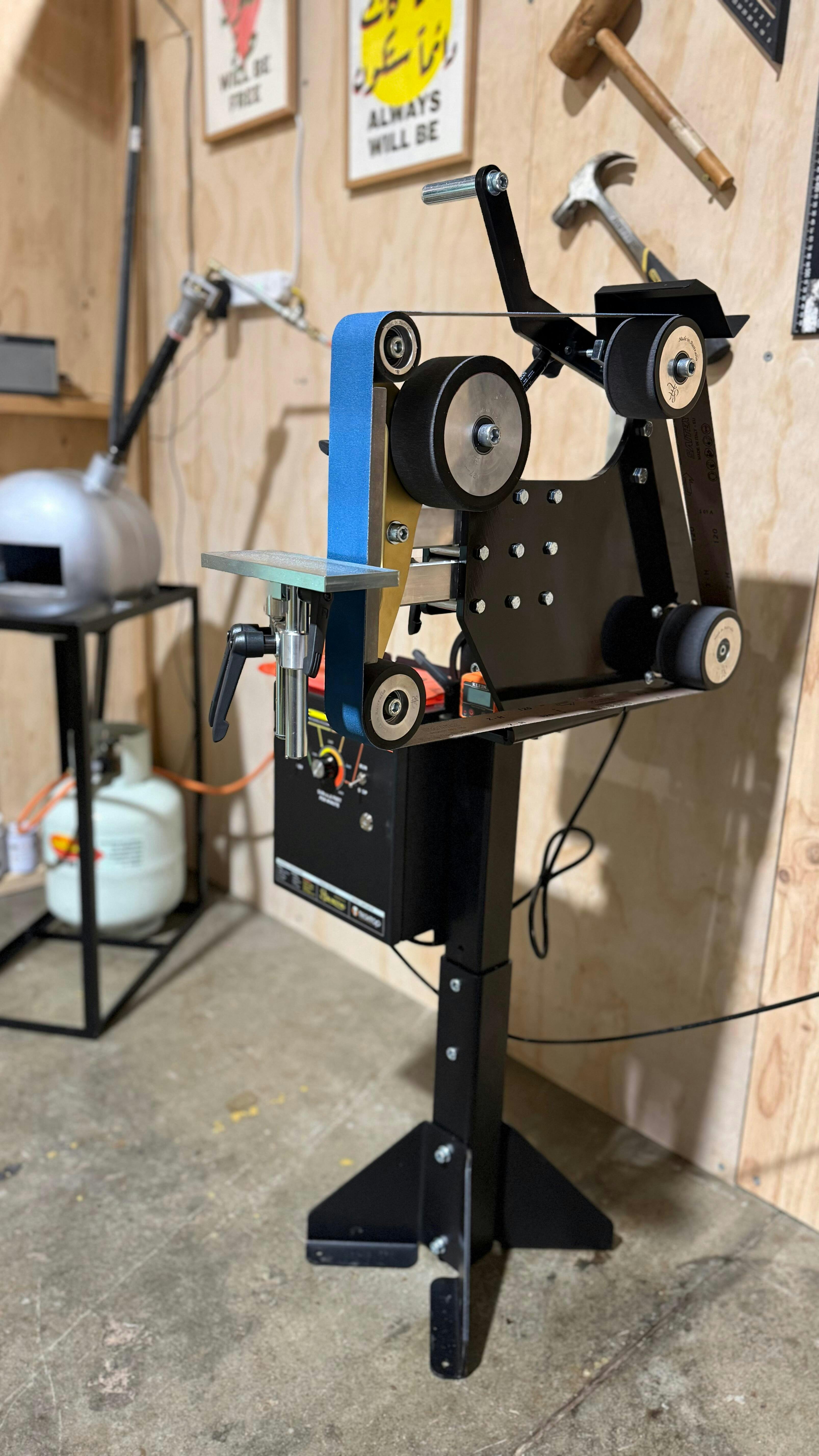

The Shop Master 2x72” Belt Grinder Linisher is a cost-effective, premium machine for serious fabricators, metal workers and knife makers wishing to get into the 2x72” belt size.

The sleek, single-piece folded body is laser cut from 10mm plate steel and makes for an extremely rigid yet uncomplicated chassis. All body components simply bolt together using basic hand tools, making servicing and assembly a breeze.

VERSATIILE

The Shop Master 2x72” grinder is one of the most versatile and easy to use machines on the market, equipped with a fixed steel work rest and a 6-in-1 rotating platen. Simply loosen the locking handle on the tooling arm and rotate the platen to change between the 215mm steel platen, a 2”, 3” & 5” rubberised contact wheel, or two different slack belt options. This design also offers ample clearance on either side of the platen making it easier to grind corners and edges on awkward work pieces.

If you require more versatility, our full range of accessories are compatible with the Shop Master 72" Linisher and can be easily swapped out via the quick-change tooling arm slots.

POWERFUL

The Shop Master belt grinder linisher will plug into any standard 240v 10a power socket. The included Variable Frequency Drive (VFD) converts power to a 3-phase signal, driving the 1.5kw (2hp) motor. This setup allows you to dial in the belt speed anywhere from 0 – 4800 fpm and provides maximum motor torque even at low RPM. The VFD will automatically ramp up power when under load to maintain belt speed.

URETHANE WHEELS

All wheels on the Shop Master grinder are precision CNC machined from 6061 billet aluminum and coated in our newly formulated abrasion-resistant urethane rubber. Not only does this provide excellent drive wheel traction (the belt will never slip, regardless of how much pressure you apply), but makes for quieter operation and a superior grinding experience. The rubberised wheels even out belt discrepancies meaning you will not experience any ‘jitter’ or ‘bounce’ through the contact wheels – even when using coarse-grit belts.

STABLE TRACKING

The Shop Master’s flat-plane tracking mechanism offers increased tracking stability and ease of adjustment over many other options available on the market. The tracking is set-and-forget;  just dial in tracking with the twist of a knob and it will remain true, even under heavy belt load. The flat-plane tracking also allows for minimal crown/curvature of the tracking wheel, so your j-flex and other lighter belts won't deform over time.

AUTOMATIC TENSIONING

The gas strut tensioning system ensures a consistent belt tension regardless of tooling setup. The tension arm is designed to lock down when the arm is in its lowest position, allowing for effortless belt and tool changes - you can even do it single handed!

WHAT'S IN THE KIT?

Included in the Shop Master 2x72" kit are all parts and fasteners required to assemble your grinder including an un-coated steel body – flat-packed in a box. Pre-wired motor and VFD are included but shipped separately due to shipping weights. Simply refer to the included instruction manual or watch our video on YouTube and see how easy it is to assemble!

  • Tip: we recommend customising your grinder by painting the raw steel components prior to assembly

Shop Master 2x72" User Manual

Product Specifications

- 2 × 72” belt length
- Pre-wired 2 hp 1.5 kW motor and VFD
- 8″ / 210mm platen - Rotating platen
- 2”,3” and 5" contact wheels
- Rubber coated wheels for smooth performance and great belt traction
- Flat plane belt tracking for accurate belt alignment
- 2 tool arm slots
- Fixed work rest
- Protective spark guard

Included in package

- Raw steel grinder body, work rest and rotating platen
- All components and fasteners required to assemble grinder
- Pre-wired 2hp (1.5kw) motor and VFD

Documents
Shipping Information

Our on-line store is open 24/7 and we ship Monday through Friday, excluding some holidays. Orders received for products without shipping restrictions on its product page will ship the following business day when received before 12:00 p.m. AEST. Orders in high demand will have an estimated production time listed on its product page and will ship according to the date listed.

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
Tim
Amazing piece of engineering

The team at 84 were unbelievable with the help choosing my 2/72 . It’s an absolute beast of a machine that will last a lifetime.

L
Luke Newberry
72”

Exceptional well made piece of equipment. You may find something similar cheaper but this is top quality and built in Australia. When you call 84 Engineering you are talking to people who build and use these grinders daily. Very happy with my purchase
Luke Newberry

Rotating Platen

Rotating 6-in-1 platen allows you to easily change between 210mm flat platen, 2" contact wheel, 3" contact wheel, 5" contact wheel and 2 different slack belt options with the twist of a handle.

Ruberised Wheels

All wheels coated in house using a durable urethane rubber - great for belt traction, accurate tracking and quieter, smoother grinding

Variable Speed

Variable Frequency Drive (VFD) allows for fine control over belt speed, from 0-4800fpm (0-24m/s) with minimal torque loss
