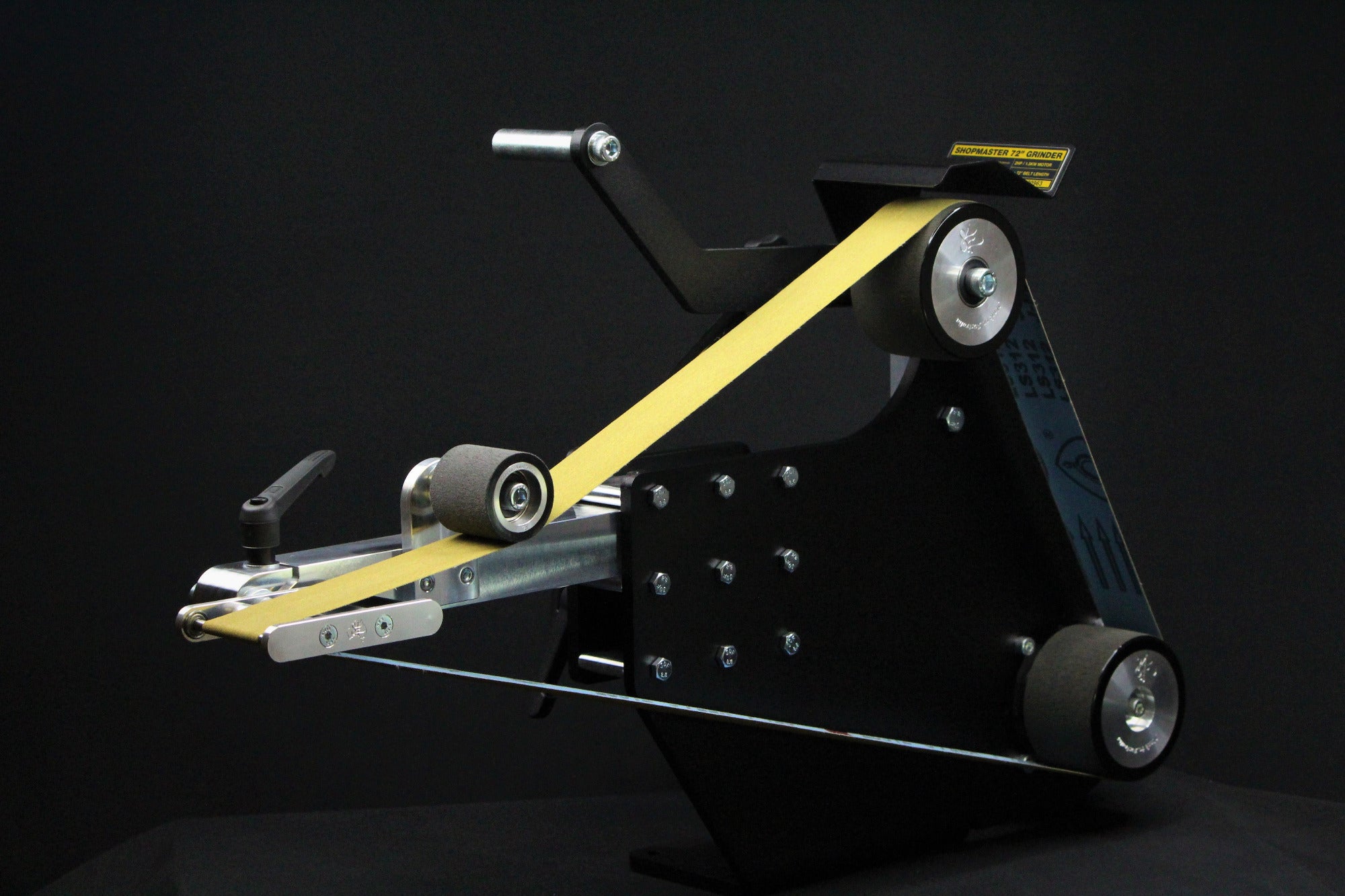

Shop Master 2x72" Assembled Belt Grinder

Price
$2,730
In stock! Usually ships within 24 hours.
Pickup available at 6 Geebung street Polo Flat NSW

Usually ready in 24 hours

View store information

WHAT IS A SHOP MASTER?

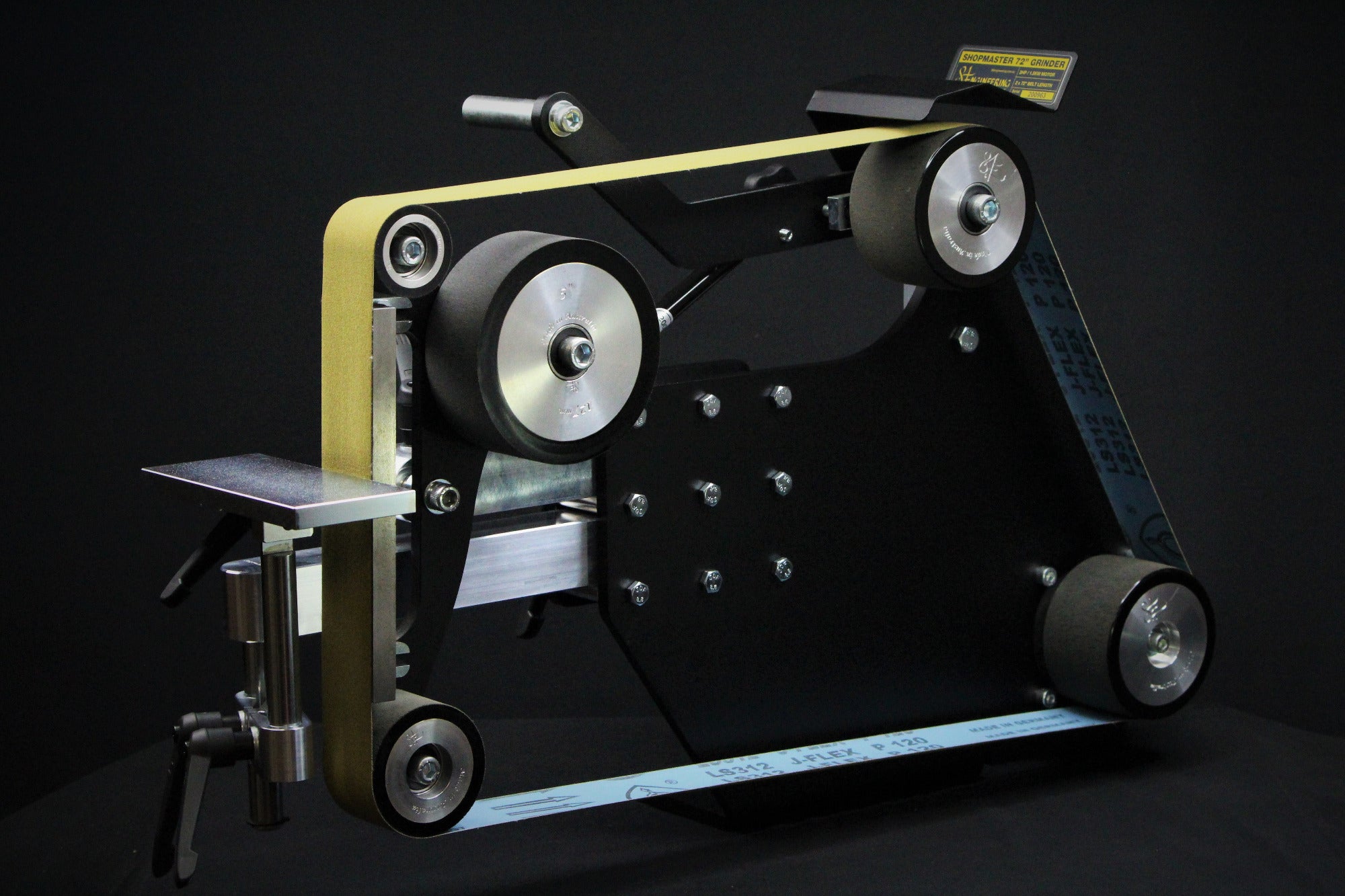

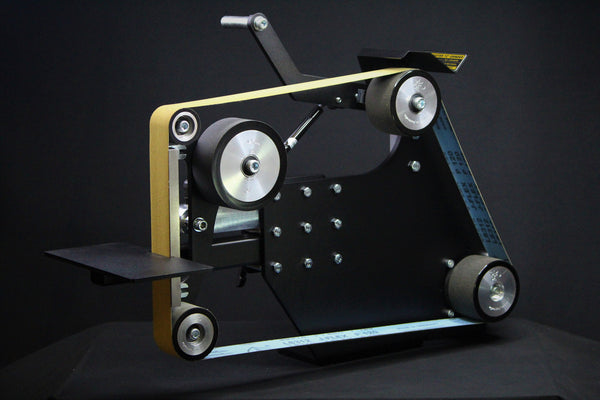

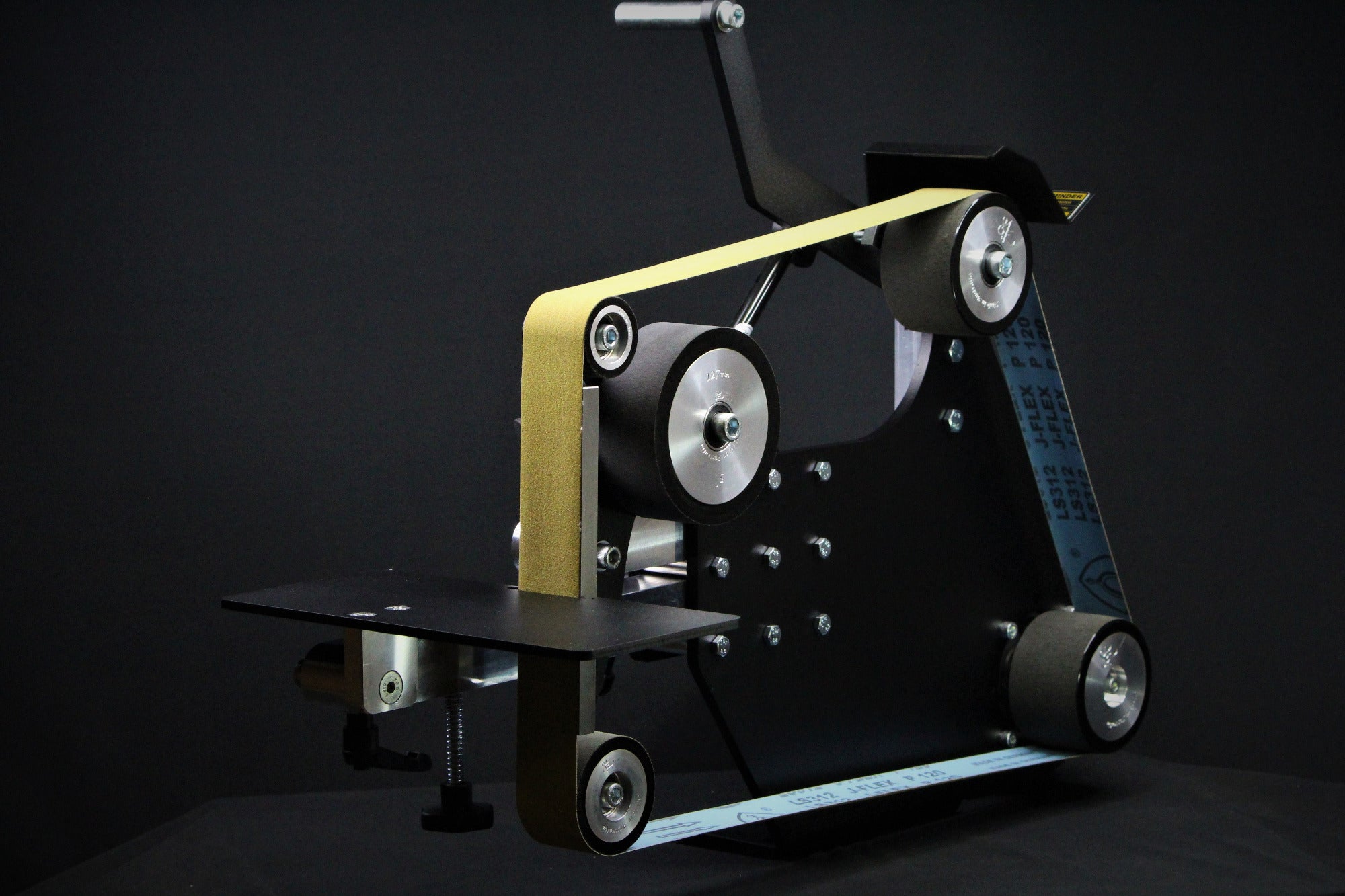

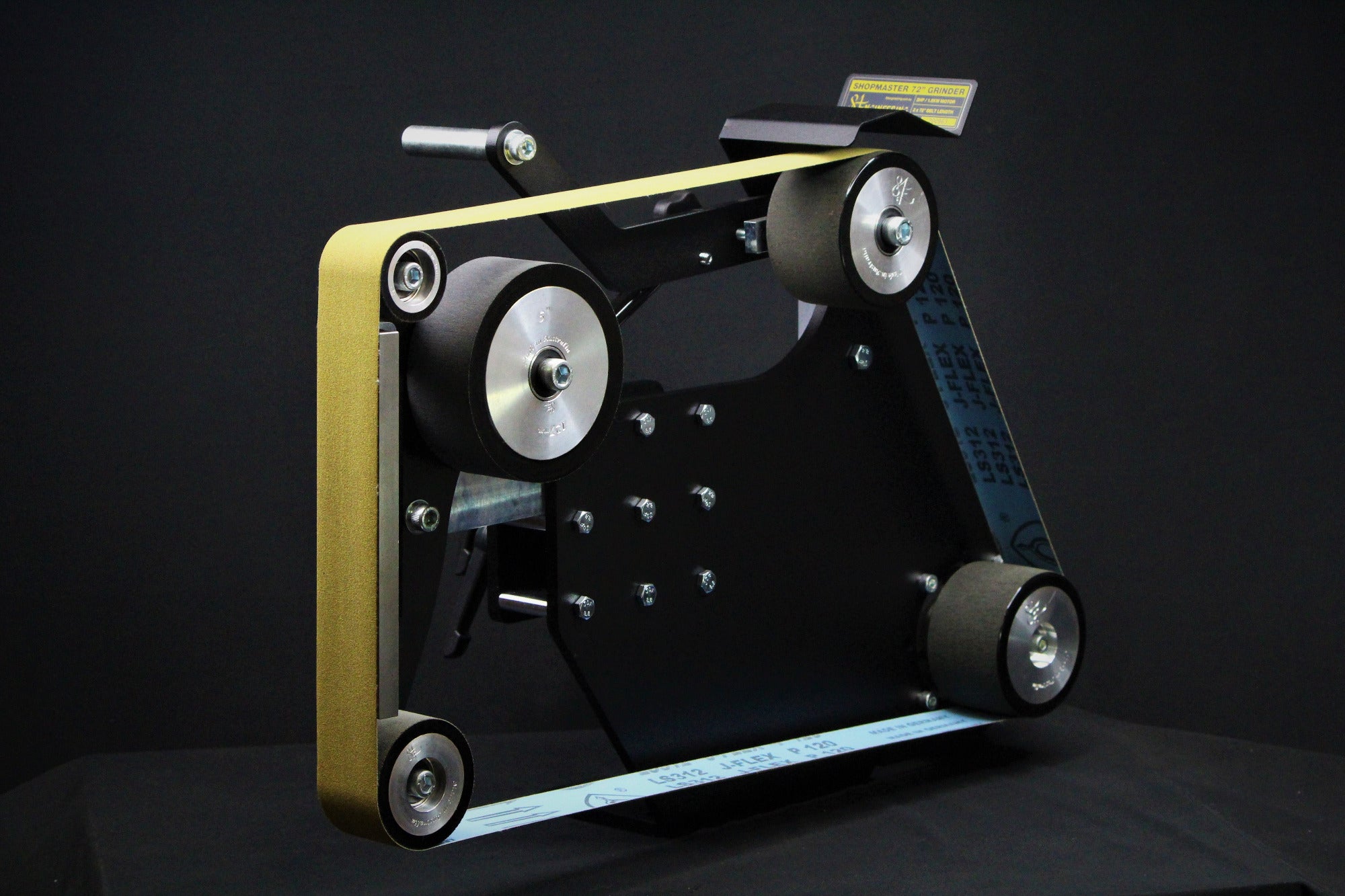

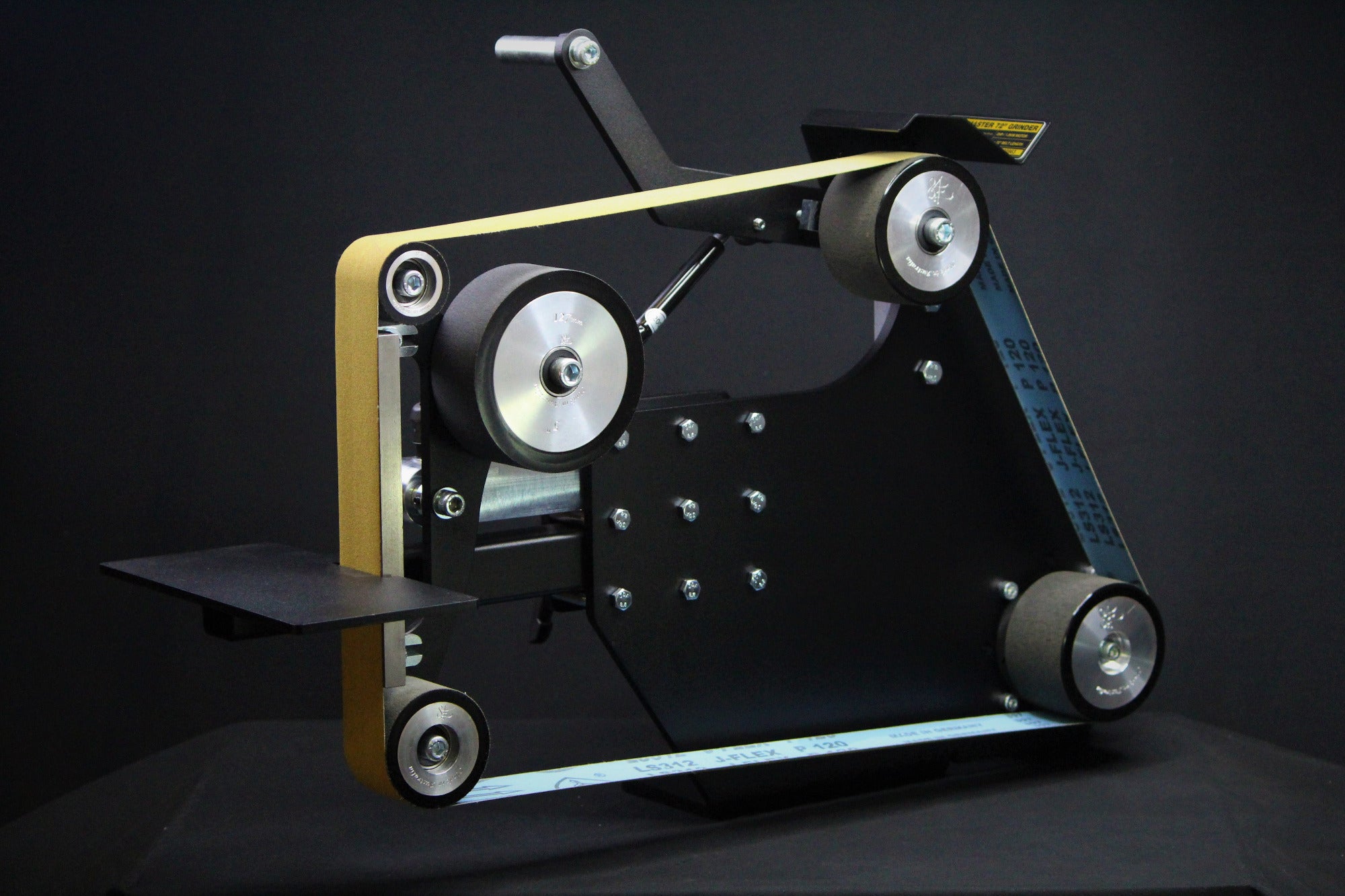

The Shop Master 2x72” Belt Grinder Linisher is a premium machine for serious fabricators, metal workers and knife makers wishing to get into the 2x72” belt size.

The sleek, single-piece folded body is laser cut from 10mm plate steel and makes for an extremely rigid yet uncomplicated chassis. All body components simply bolt together using basic hand tools, making servicing and assembly a breeze.

VERSATILE

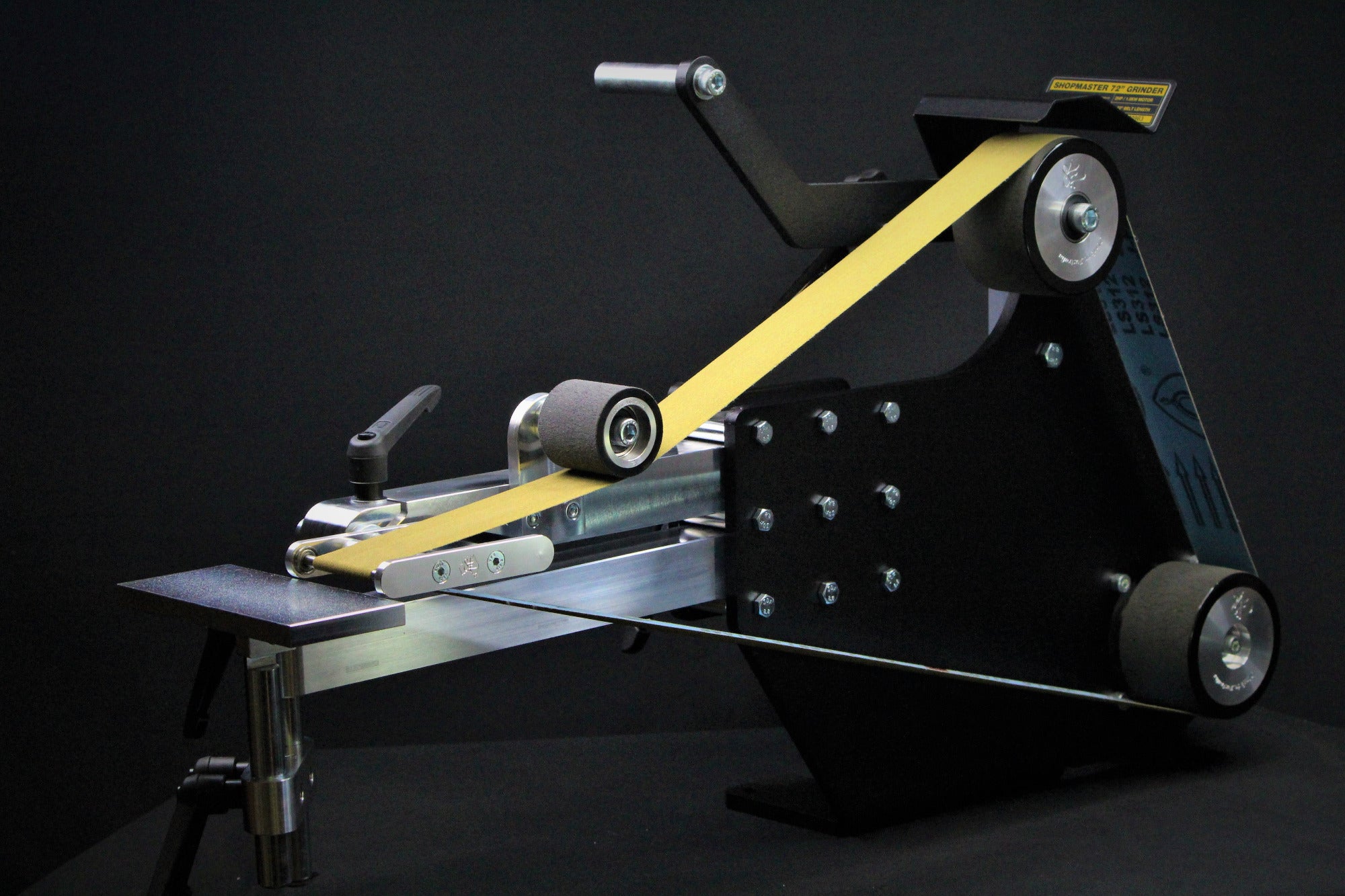

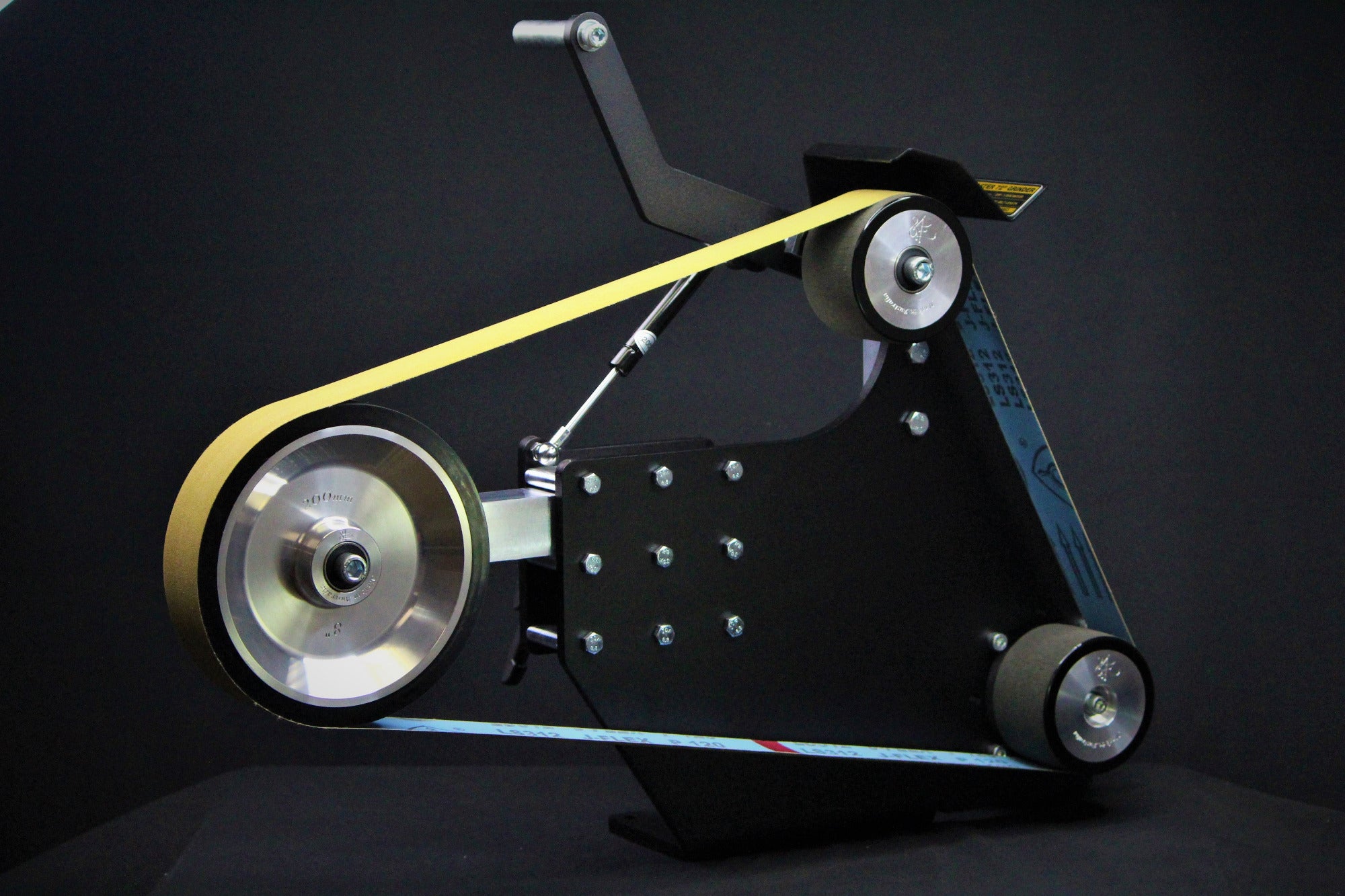

The Shop Master 2x72” belt grinder linisher is one of the most versatile and easy to use machines on the market, equipped with a fixed steel work rest and a 6-in-1 rotating platen. Simply loosen the locking handle on the tooling arm and rotate the platen to change between the 215mm steel platen, a 2”, 3” & 5” rubberised contact wheel, or two different slack belt options. This design also offers ample clearance on either side of the platen making it easier to grind corners and edges on awkward work pieces.

If you require more versatility, our full range of accessories are compatible with the Shop Master 72" belt grinder and can be easily swapped out via the quick-change tooling arm slots.

POWERFUL

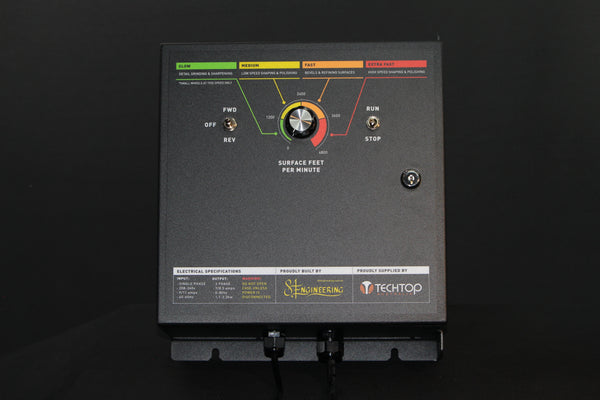

The Shop Master grinder linisher will plug into any standard 240v 10a power socket. The included variable frequency drive (VFD) / speed controller converts power to a 3-phase signal, driving the 1.5kw (2hp) motor. This setup allows you to dial in the belt speed anywhere from 0 – 4800 fpm and provides maximum motor torque even at low RPM. The VFD will automatically ramp up power when under load to maintain belt speed.

URETHANE WHEELS

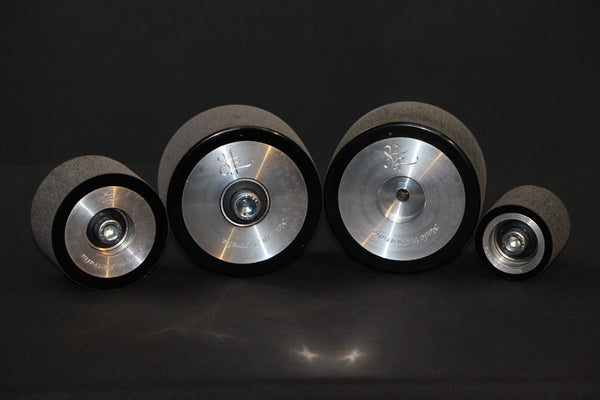

All wheels on the Shop Master belt grinder linisher are precision CNC machined from 6061 billet aluminum and coated in our newly formulated abrasion-resistant urethane rubber. Not only does this provide excellent drive wheel traction (the belt will never slip, regardless of how much pressure you apply), but makes for quieter operation and a superior grinding experience. The rubberised wheels even out belt discrepancies meaning you will not experience any ‘jitter’ or ‘bounce’ through the contact wheels – even when using coarse-grit belts / abrasives.

STABLE TRACKING

The Shop Master’s flat-plane tracking mechanism offers increased tracking stability and ease of adjustment over many other options available on the market. The tracking is set-and-forget;  just dial in tracking with the twist of a knob and it will remain true, even under heavy belt load. The flat-plane tracking also allows for minimal crown/curvature of the tracking wheel, so your j-flex and other lighter abrasives / belts won't deform over time.

AUTOMATIC TENSIONING

The gas strut tensioning system ensures a consistent belt tension regardless of tooling setup. The tension arm is designed to lock down when the arm is in its lowest position, allowing for effortless belt and tool changes - you can even do it single handed!

ASSEMBLY?

Due to the weight of the Shop Master, the we have broken the grinder down into 2 cartons. In one carton is a semi-assembled, powder coated body, assembled platen and drive wheel. In another box is a pre-wired motor and VFD. Simply bolt motor to the body, install the drive wheel and your grinder is ready to go

Shop Master 2x72" User Manual

    Product Specifications

    - 2 × 72” belt length
    - Pre-wired 2 hp 1.5 kW motor and VFD
    - 8″ / 210mm platen - Rotating platen
    - 2”,3” and 5" contact wheels
    - Rubber coated wheels for smooth performance and great belt traction
    - Flat plane belt tracking for accurate belt alignment
    - 2 tool arm slots

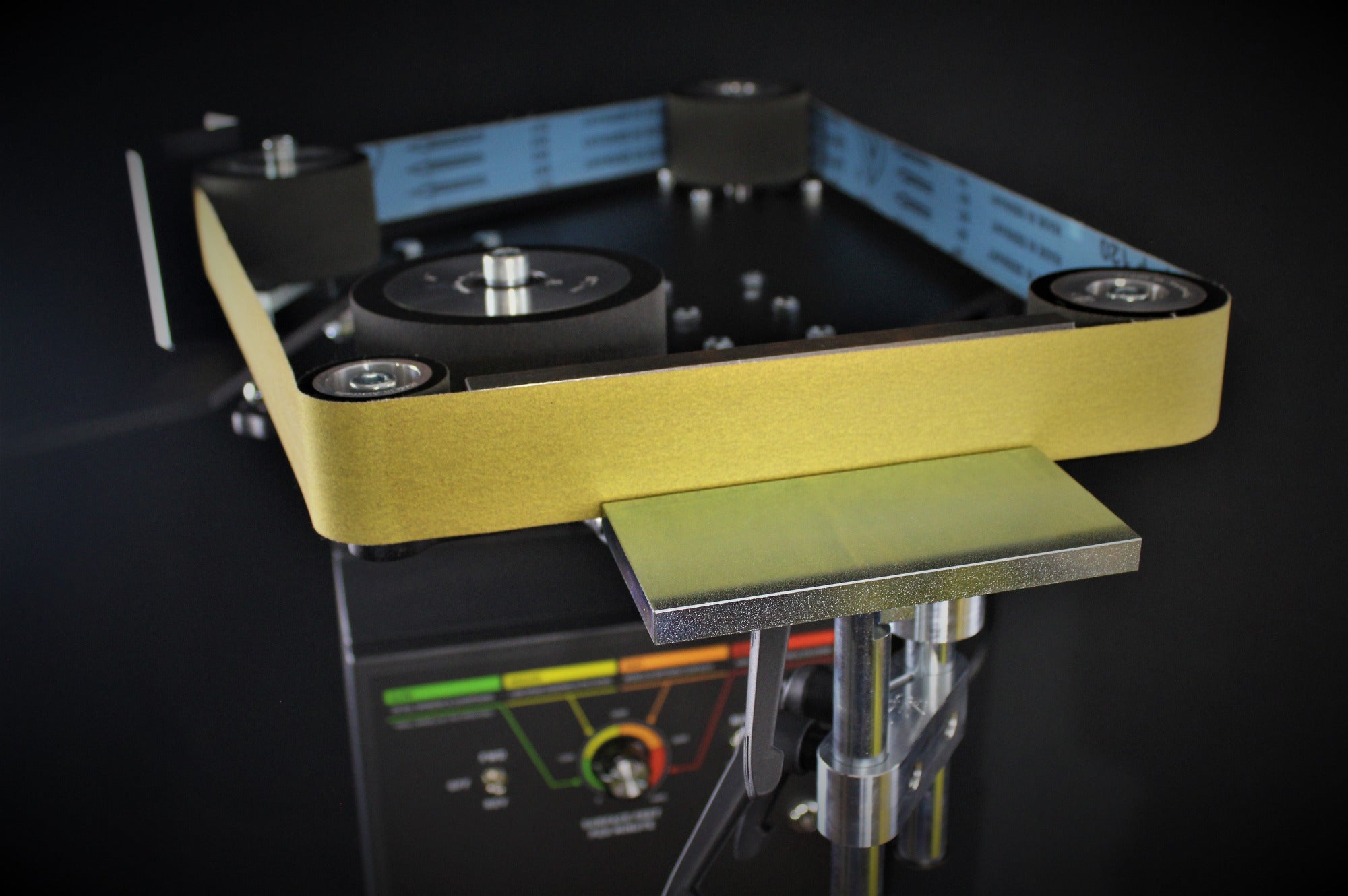

    - Fixed work rest
    - Protective spark guard

    Included in package

    - 72″ powder coated grinder body
    - Powder coated tool rest
    - Rotating platen
    - Pre-wired 2hp (1.5kw) motor and VFD

    Documents
    Shipping Information

    Our on-line store is open 24/7 and we ship Monday through Friday, excluding some holidays. Orders received for products without shipping restrictions on its product page will ship the following business day when received before 12:00 p.m. AEST. Orders in high demand will have an estimated production time listed on its product page and will ship according to the date listed.

    Customer Reviews

    Based on 8 reviews
    100%
    (8)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    L
    Lindsay Robertson
    Exceptional Engineering

    Being a trainer and lecturer in the engineering trades for more than 40 years it heartening to see we can still make quality in this country. The ShopMaster 2 x 72 Super Deluxe is clever, practical, and quality engineering that just simply works. It comes with all the fruit needed to do the job. Ewan even threw in a couple of bonus bits. Sweet deal. There was no compromise on the materials or the workmanship either. The balance of the machine was second to none that I have ever used domestically and in industry. Something as simple as the engraved name on each component demonstrates the pride they have in their workmanship. Ewan and his team do a great job, are well priced and extremely helpful and accommodating when discussing the customers needs. 84 Engineering is becoming recognised worldwide for their machine quality and design. Do yourself a favour. Forget the rest and go with the best. I have finally found something made in Australia I am proud to own. Thankyou.

    B
    Bernard Moffatt
    Untried

    My belt grinder is still in the box. I hope to get to it in the next couple of weeks.

    C
    Craig Hawkins
    Belt Grinder Order

    This has been a great experience.
    Procurement was easy and intuitive, delivery fast and efficient, and the quality of the product is outstanding.
    Well done 84 Engineering!

    B
    Bonavia Blades
    Bees knees

    I have three grinders and used countless others. The shopmaster is by far the best, most versatile and well built one I've seen and used. Well done Ewan and the rest of the team.
    Andrew,
    Bonavia Blades

    T
    Toby Hounslow-robinson

    Very happy, it is a very well built machine and does the job very well. And got great service from you guys. Thanks

    Rotating Platen

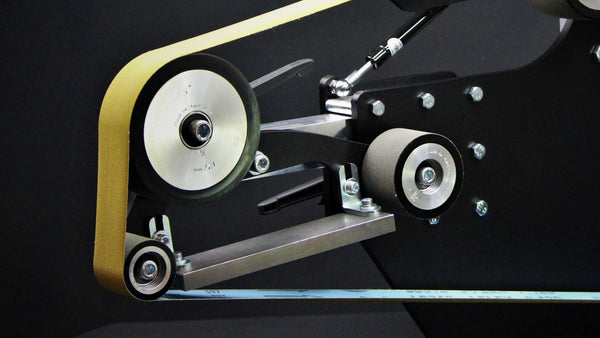

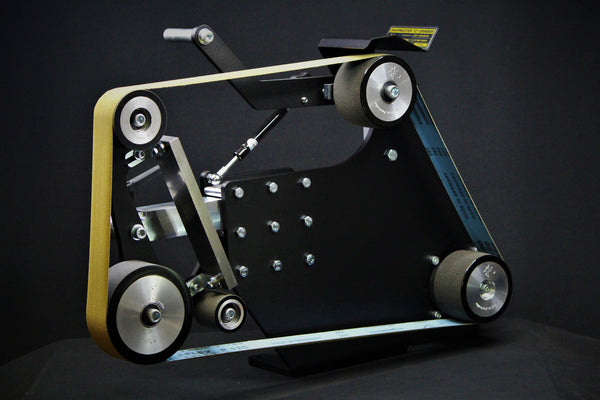

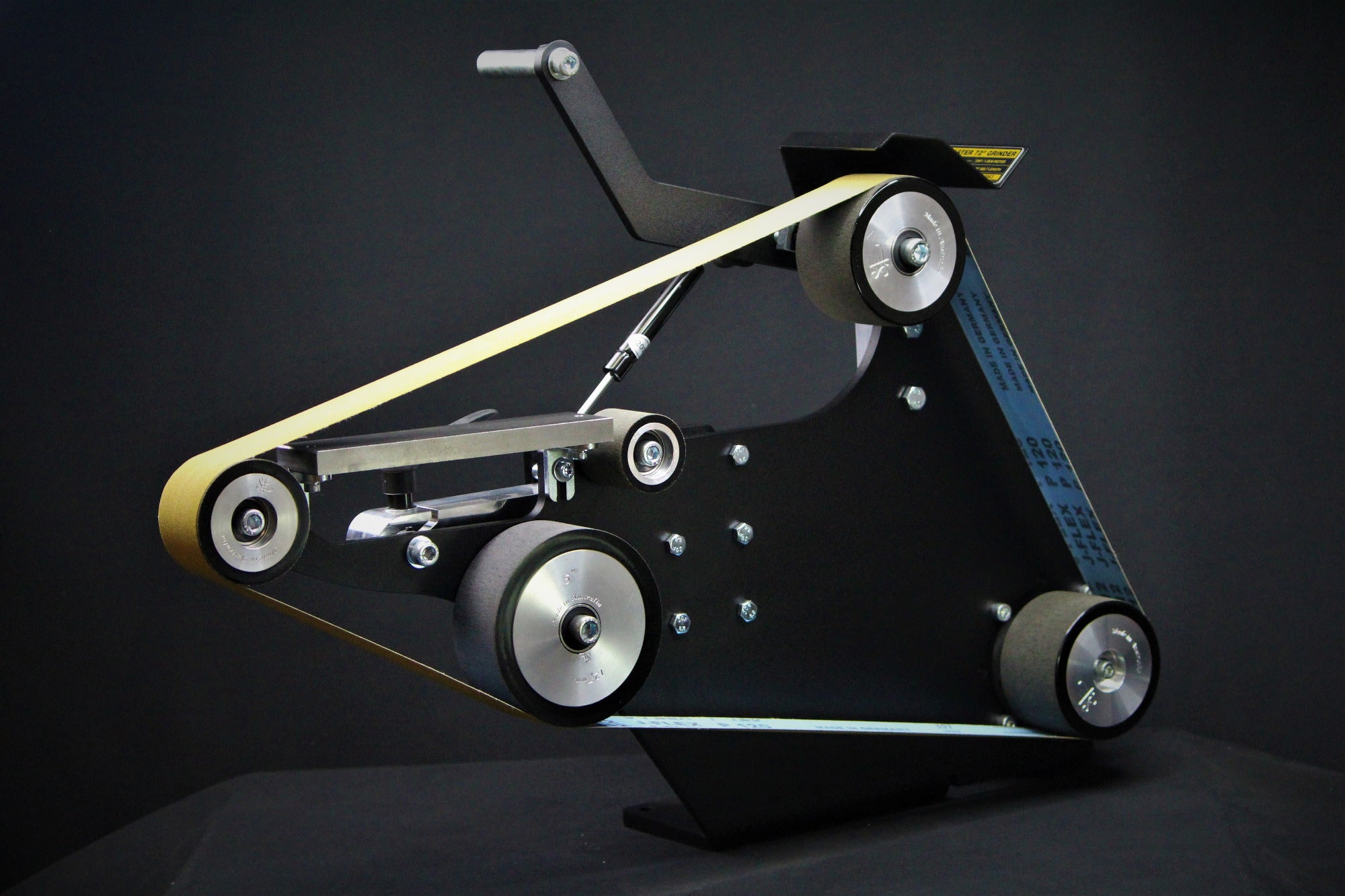

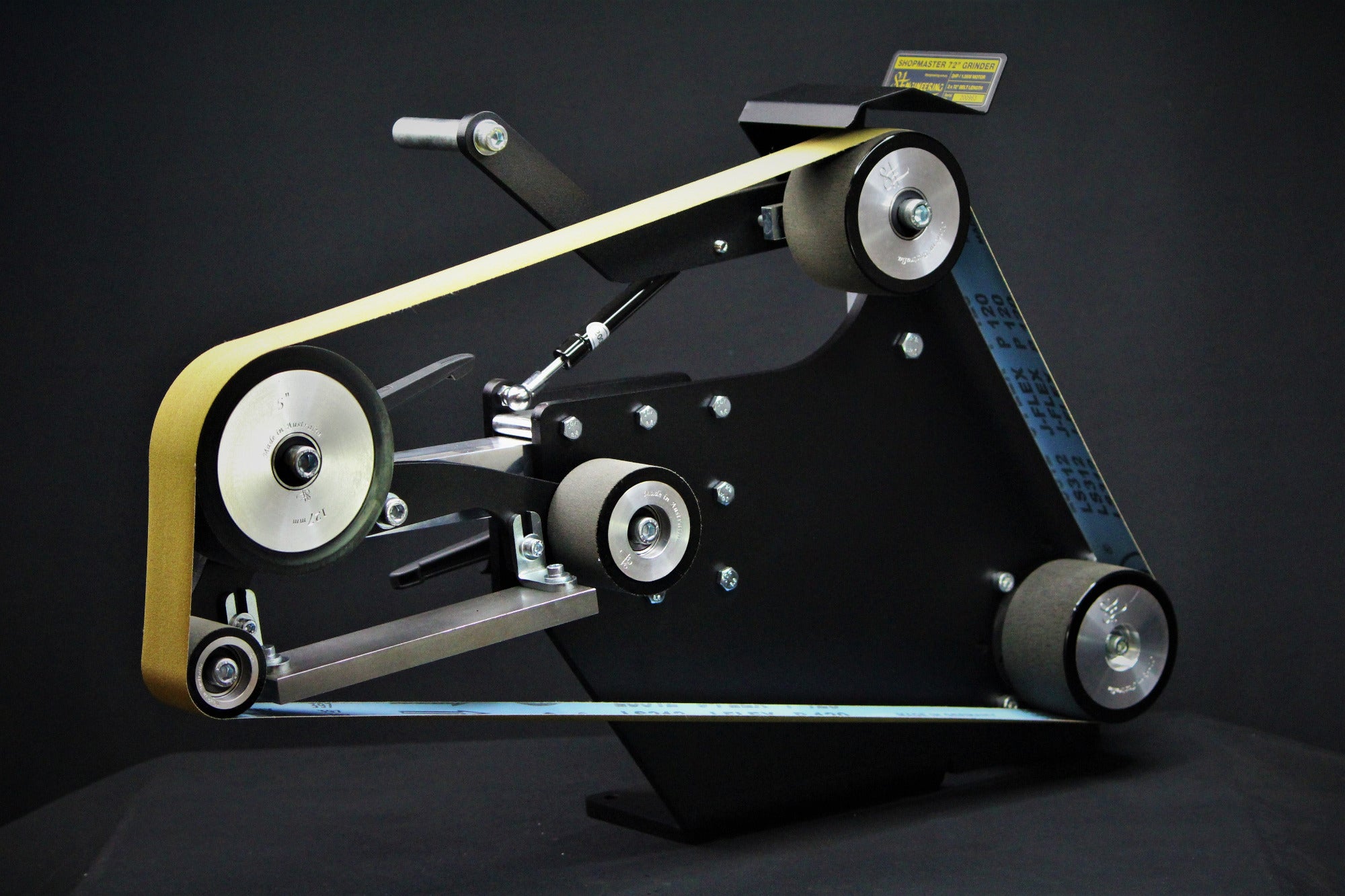

    Rotating 6-in-1 platen allows you to easily change between 210mm flat platen, 2" contact wheel, 3" contact wheel, 5" contact wheel and 2 different slack belt options with the twist of a handle.

    Ruberised Wheels

    All wheels coated in house using a durable urethane rubber - great for belt traction, accurate tracking and quieter, smoother grinding

    Variable Speed

    Variable Frequency Drive (VFD) allows for fine control over belt speed, from 0-4800fpm (0-24m/s) with minimal torque loss
