Motor & VFD Combo

Price
$605
Motor Option:
In stock! Usually ships within 24 hours.
Pickup available at 6 Geebung street Polo Flat NSW

Usually ready in 24 hours

View store information

DESCRIPTION

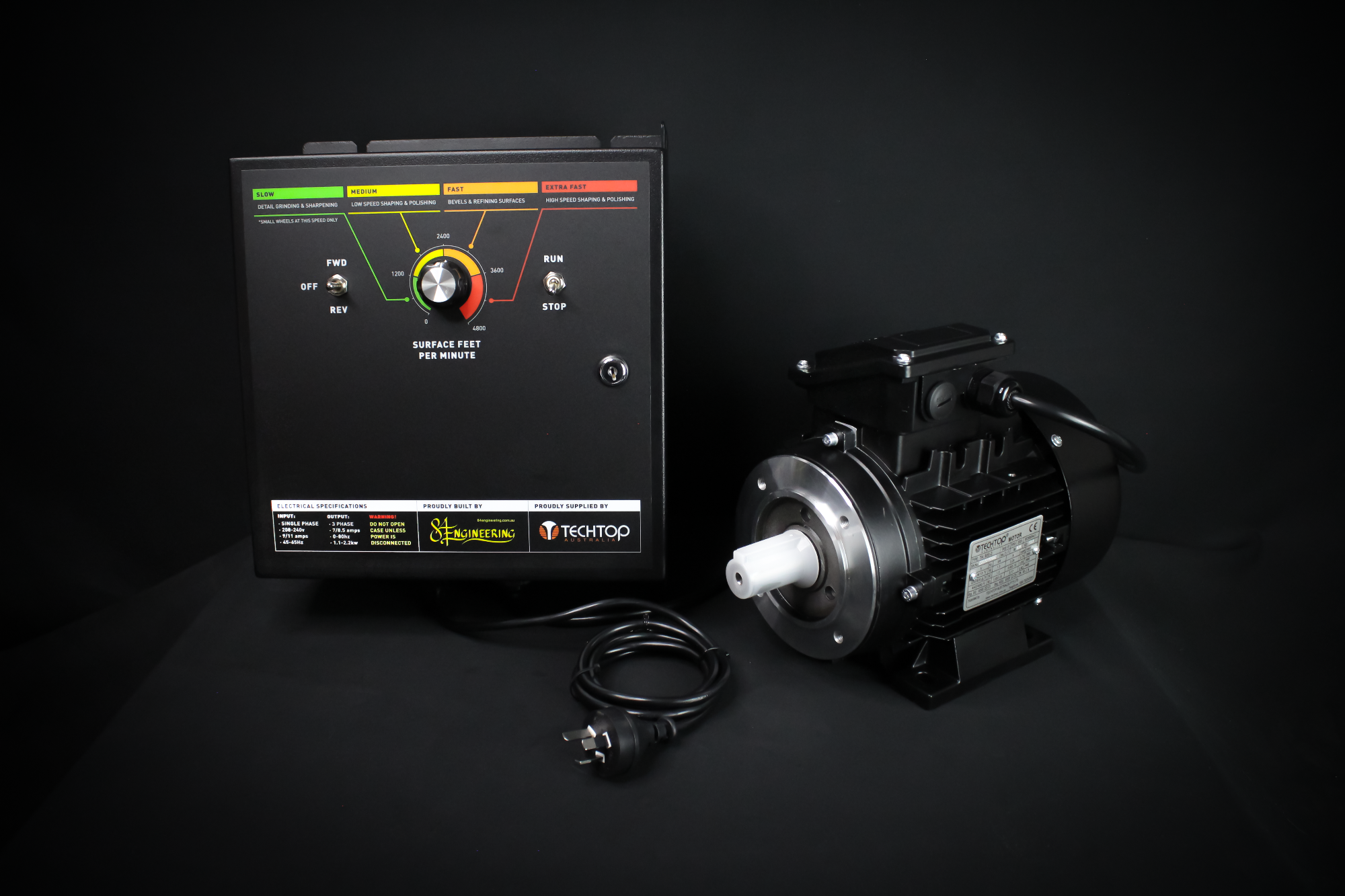

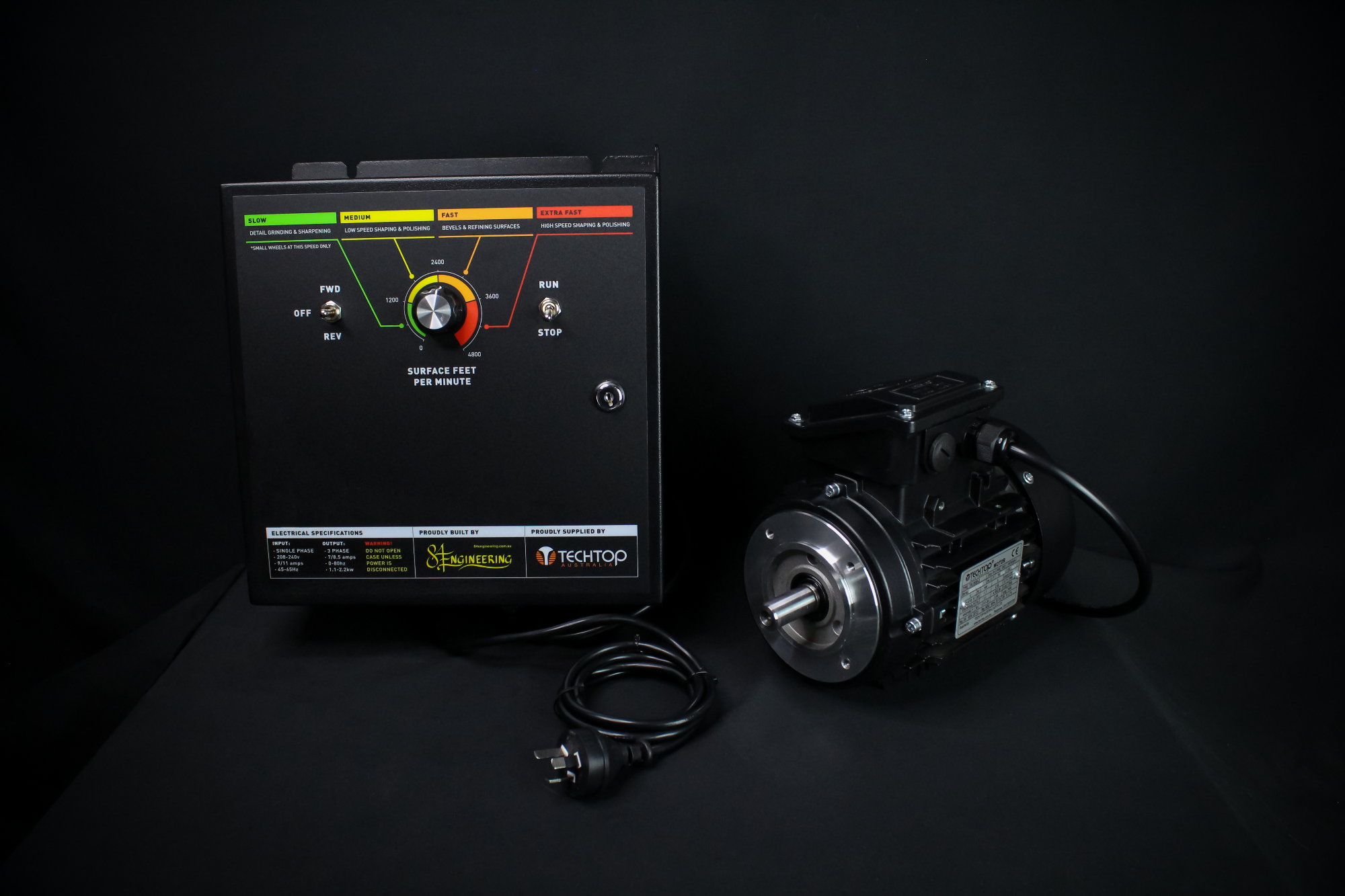

84 Engineering pre-wired motor and VFD combos plug into any standard 240v power socket. The units comprise a Techtop ES-F0 series Variable Frequency Drive mounted in a custom 84 Engineering IP65 lockable steel inclosure, powering a 3-phase industrial Techtop motor. These units come pre-wired and are programmed specifically to the motor / application, so out of the box you get a true plug-and-play unit.Included is a 1.5m power cable between motor and VFD cabinet and 1.5m plug lead.

The Variable Frequency Drive (VFD) / speed controller converts power to a 3-phase signal, driving the motor. This setup allows you to accurately control motor speed and provides maximum torque even at low RPM. The VFD will automatically ramp up power when under load to maintain belt speed.

Our pre-wired motor / VFD combos are direct replacements for the drive units on your 84 Engineering variable speed disc grinder or Shop Mate 48" & Shop Mate 72" Belt grinders.

The units can also be used to upgrade fixed-speed belt grinders, or for home-made projects. PLEASE SEE PURCHASE OPTIONS BELOW - CUSTOM PROGRAMMED UNITS TO YOUR SPECIFICATIONS AVAILABLE ON REQUEST.

.

PURCHASE OPTIONS

.


1.5kw Motor

This motor / drive combo is a direct replacement for the Shop Master 72" Belt grinder.

Specifications:

Input Power: 10a 240v AU plug

Drive: Techtop ES-F0 VFD

Motor: Techtop 1.5kw (2hp) 2-pole B14a "c" Flange 90 size frame

Speed: 0-4500RPM forward, 0-2000RPM reverse

SAFETY NOTE: This unit is programmed ONLY to be used for belt grinder applications  with <4" drive wheel diameter. (Using larger drive wheel will result in dangerous belt speeds).

.

1.1kw Motor

This motor / drive combo is a direct replacement for the Shop Mate 48" Belt grinder.

Specifications:

Input Power: 10a 240v AU plug

Drive: Techtop ES-F0 VFD

Motor: Techtop 1.1kw (1.5hp) 2-pole B14a "c" Flange 80 size frame

Speed: 0-4500RPM forward, 0-2000RPM reverse

SAFETY NOTE: This unit is programmed ONLY to be used for belt grinder applications  with <4" drive wheel diameter. (Using larger drive wheel will result in dangerous belt speeds).

.

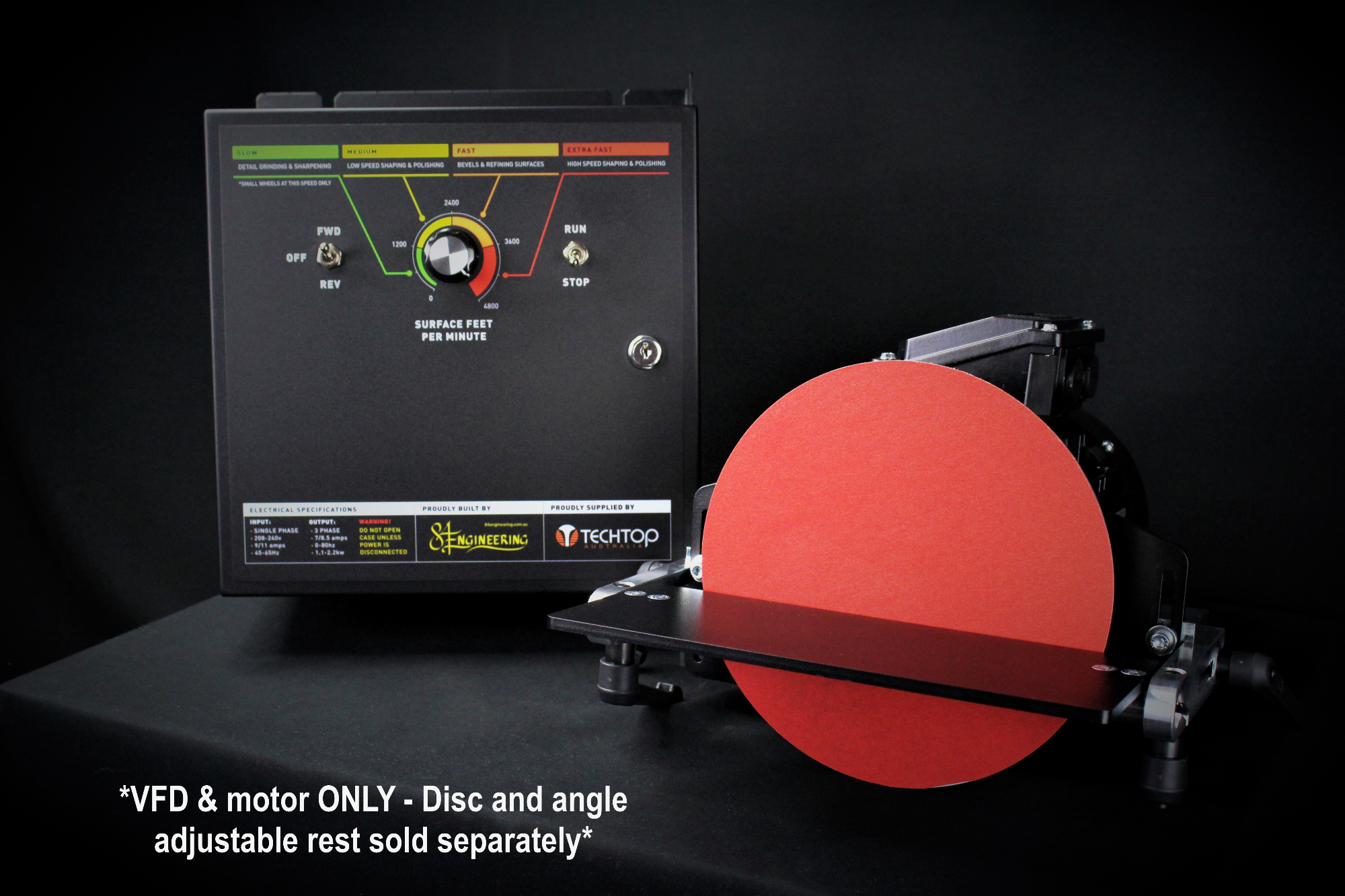

0.75kw Motor (Disc Grinder Use)

This motor / drive combo is a direct replacement for the 84 Engineering Variable Speed disc grinder.

Specifications:

Input Power: 10a 240v AU plug

Drive: Techtop ES-F0 VFD

Motor: Techtop 0.75kw (1hp) 4-pole B14a "c" Flange 80 size frame

Speed: 0-2300RPM forward & reverse

SAFETY NOTE: This unit is optimised for disc grinder applications. The 4-pole motor operates within a safe RPM range for disc use and provides maximum torque at a more useable RPM range.



CUSTOM PROGRAMMED DRIVE



If you require a VFD / Motor combo for a custom application, please contact us directly as we offer custom drive programming to suit your needs. This is a free service we offer and is applicable to any 3 motor options. Please feel free to contact us for custom motor/drives on 0448 531 822 or email us at team@84engineering.com.au
Product Specifications

See description

Included in package

-Techtop ES-F0 Variable frequency drive enclosed in custom IP65 steel enclosure
-Techtop 3-phase industrial motor
-1.5m cable connecting motor and VFD
-1.5m power lead with 10a 240v AU plug

Documents
Shipping Information

Our on-line store is open 24/7 and we ship Monday through Friday, excluding some holidays. Orders received for products without shipping restrictions on its product page will ship the following business day when received before 12:00 p.m. AEST. Orders in high demand will have an estimated production time listed on its product page and will ship according to the date listed.

Plug-and-play

84 Engineering motor and VFD combos are professionally wired and programmed so they are ready to use out of the box

FREE SHIPPING AUSTRALIA-WIDE

All 84 Engineering products are shipped free to your door anywhere in Australia

Custom programming available

Drives and motors specced to your custom requirements on request
